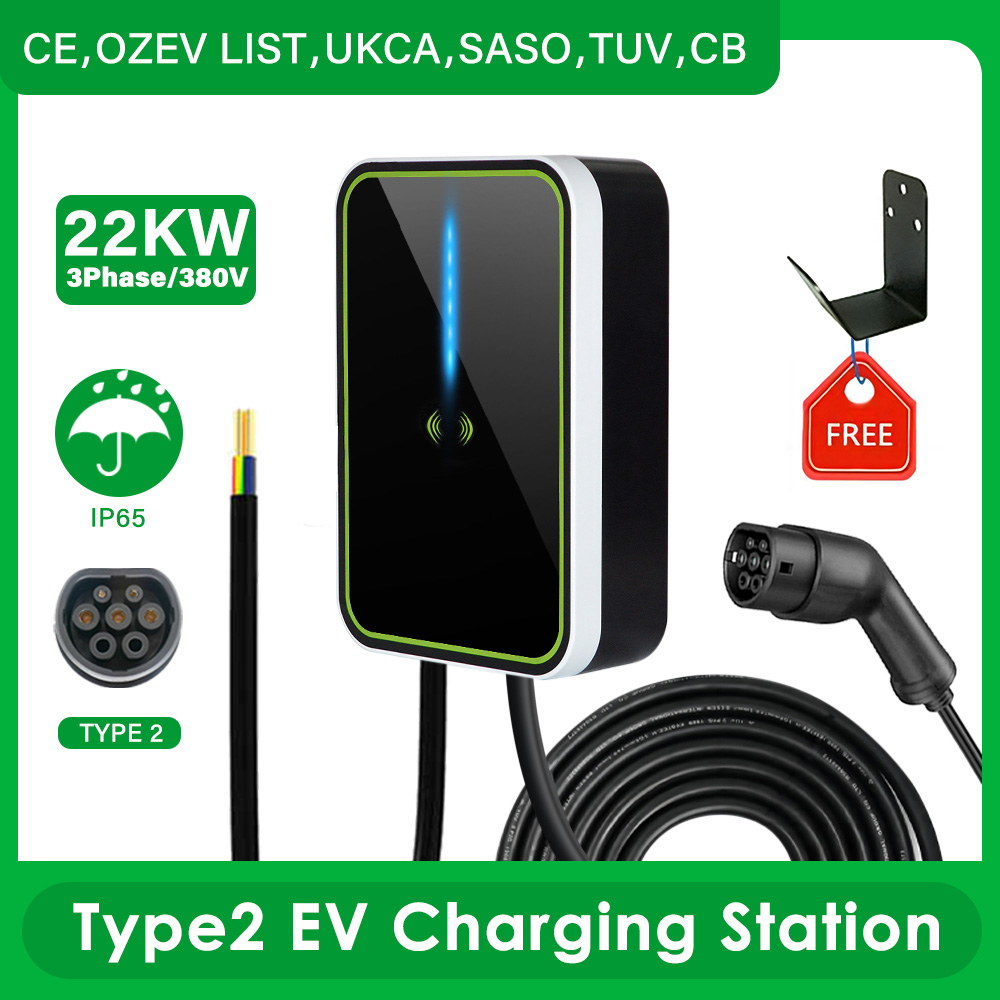

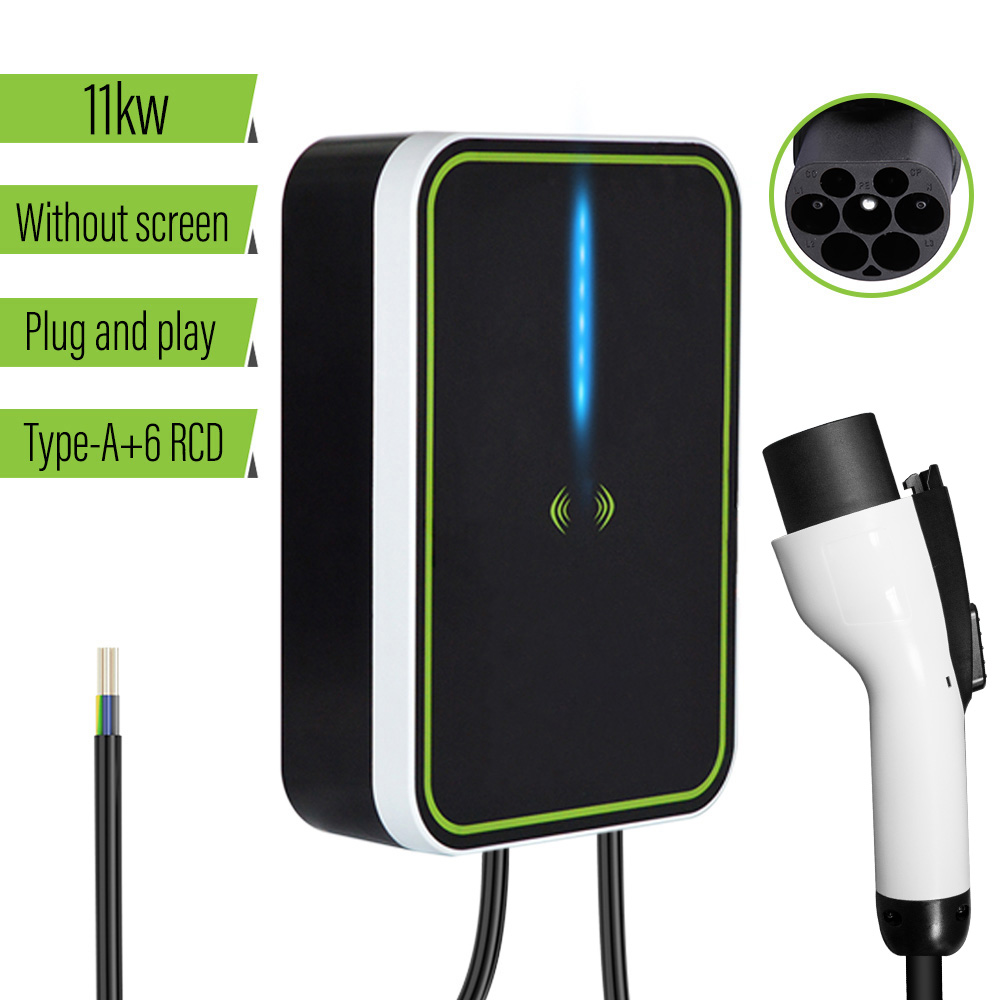

Dark Horse AC electric car charger 22KW is in an elegant design. It follows IEC 61851, 22KW, 380V, 32A, 3 functions optional such as plug and plays/ RFID card authorization/APP make it very suitable for home charging. High performance charging control board of our best 22KW EV charger is compatible with all styles of electric vehicle charging. Leakage protection , Upgrade to Type A 30mA AC + 6mA DC（three phase） and IP65 waterproof and UV protection ABS casing ensure trustability and safety. It provides customers with quality, security and a friendly charging experience.

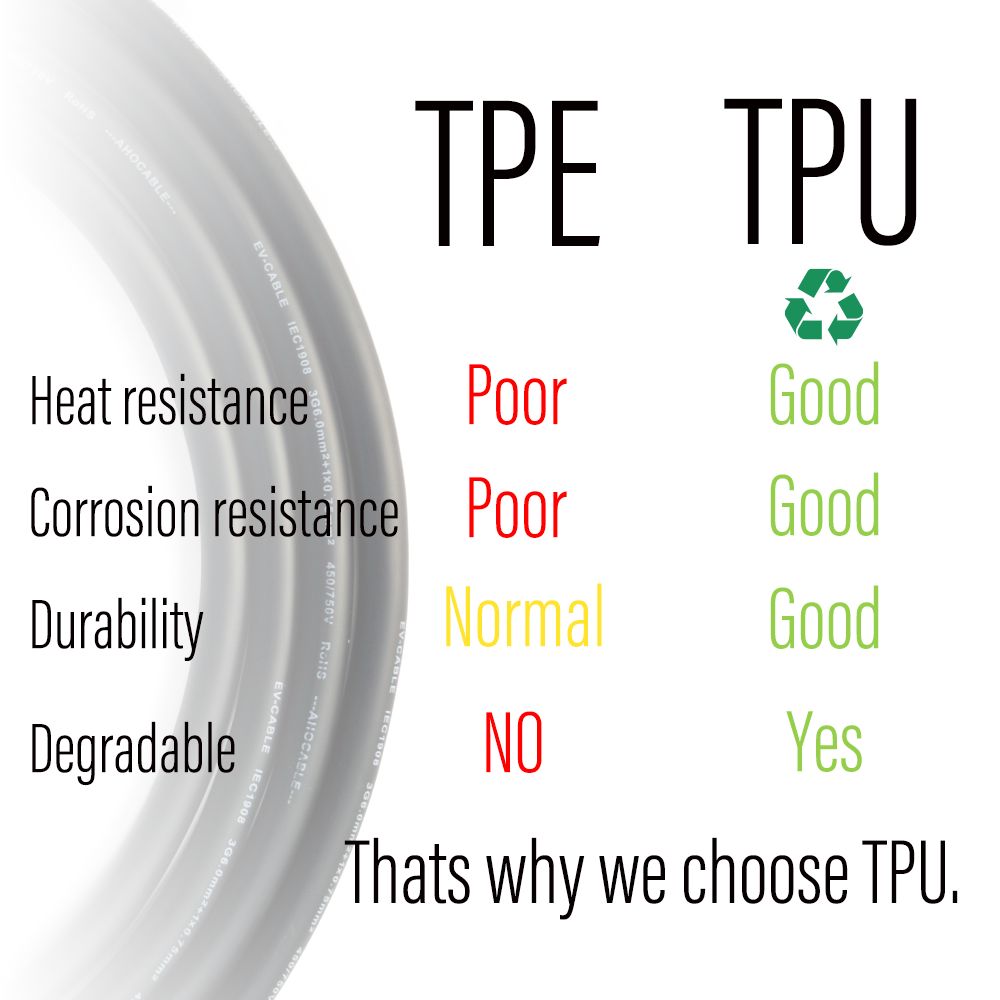

The EV Charger 32A IEC 61851 380V,casing colours available in black and white, customised casing colours and charging string lengths available for larger orders. Compatible with IEC 61851 , Designed with safety in mind, there are protection mechanisms forover-current,over-voltage andover-temperature problems, with a aggregate of 8 safety measures to cover the device and the auto during charging. The casing is made of ABS PC injection moulding and has a fire standing of UL94V_0. The factors of the main board are handed in well- known manufacturers, with dependable quality. The main control MCU is characterised by low power consumption, high performance and high integration. The operating temperature covers-40 °C-85 °C, which can meet the harsh working terrain.The EV charging string is made of high chastity bobby with excellent electrical conductivity, slow heating of the captain during high current charging and long operating time. The external cover is made of high quality cable, which is resistant to erosion and low temperatures, so that the charging string won't harden due to low temperatures and help the device from working duly. Easy to install, it's recommended to use hard wiring for the input power string. The installation height of the charging device is about1.5 M from the ground. a hook is included to store the ev charging string.
★Multiple Protections Ensure Safe Use - Safety always comes first. Our EV car charger has built-in protections against Lightning, Current-leakage, Overcurrent, Over-heat, Under-voltage, and Over-voltage, as indicated by the LED varied flashing frequency. It will automatically power off if any abnormal situation happens in case of any damage to your car.
★Flame retardant material - Anti-combustion, using flame-retardant materials to prevent accidents
★HIGH QUALITY - CE certified, which makes the service life longer, the internal smart chip protects your car and circuit you can use it with confidence.
★UNIVERSAL - The charger is IEC 61851 compliant and capable of charging hybrid/plug-in electric vehicles.

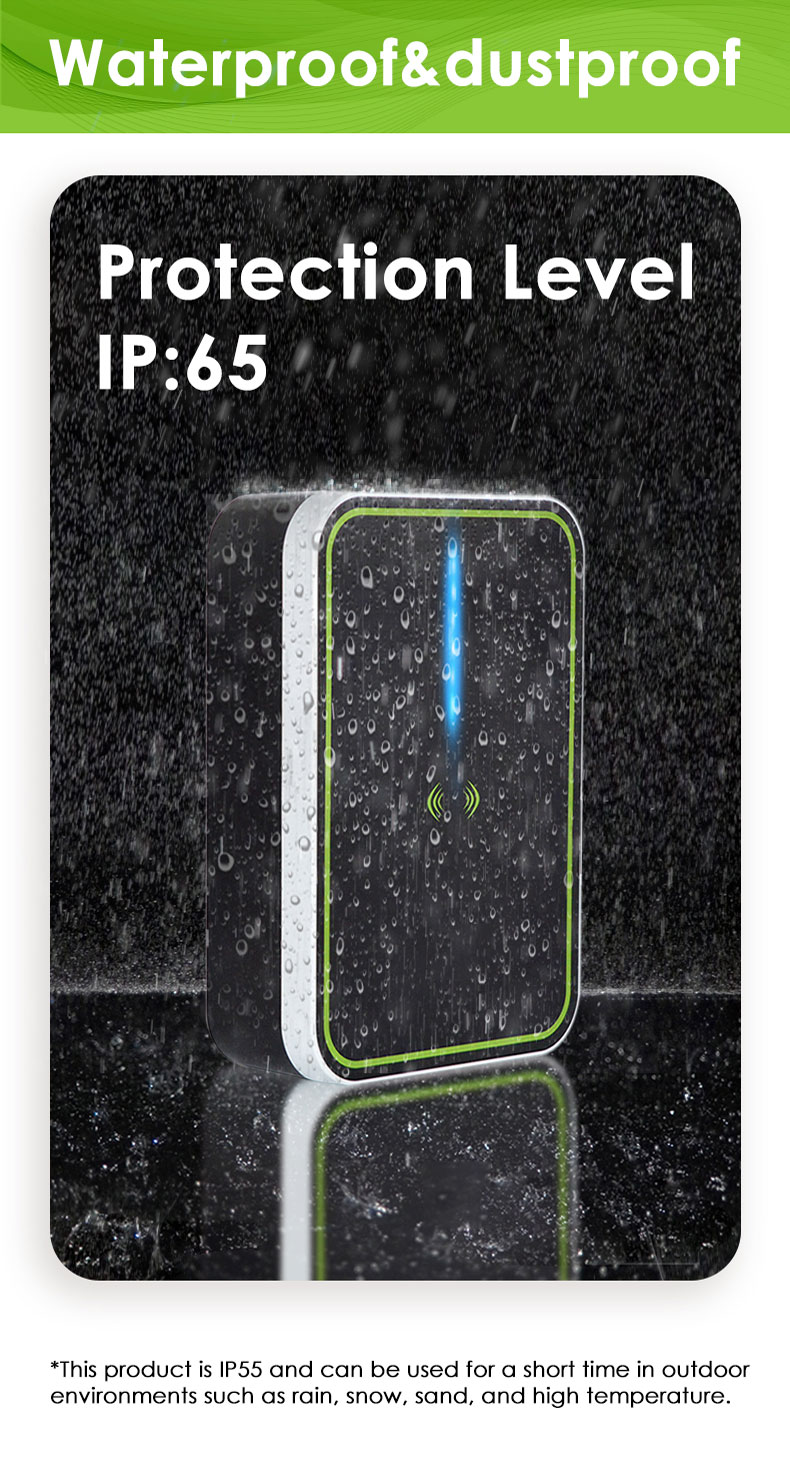

★Weatherproof for Outdoor or Indoor Use - Waterproof grade IP65.Place and move your portable charger anywhere around your home both inside and out
★Safe & Secure - Our chargers have over-current protection, over-voltage protection, under-voltage protection, leakage protection, overheating protection.
★Professional customer service - HENGYI's customer service team provides technical support and a 12-month warranty. If you are not completely satisfied, please contact us and we will solve it for you!

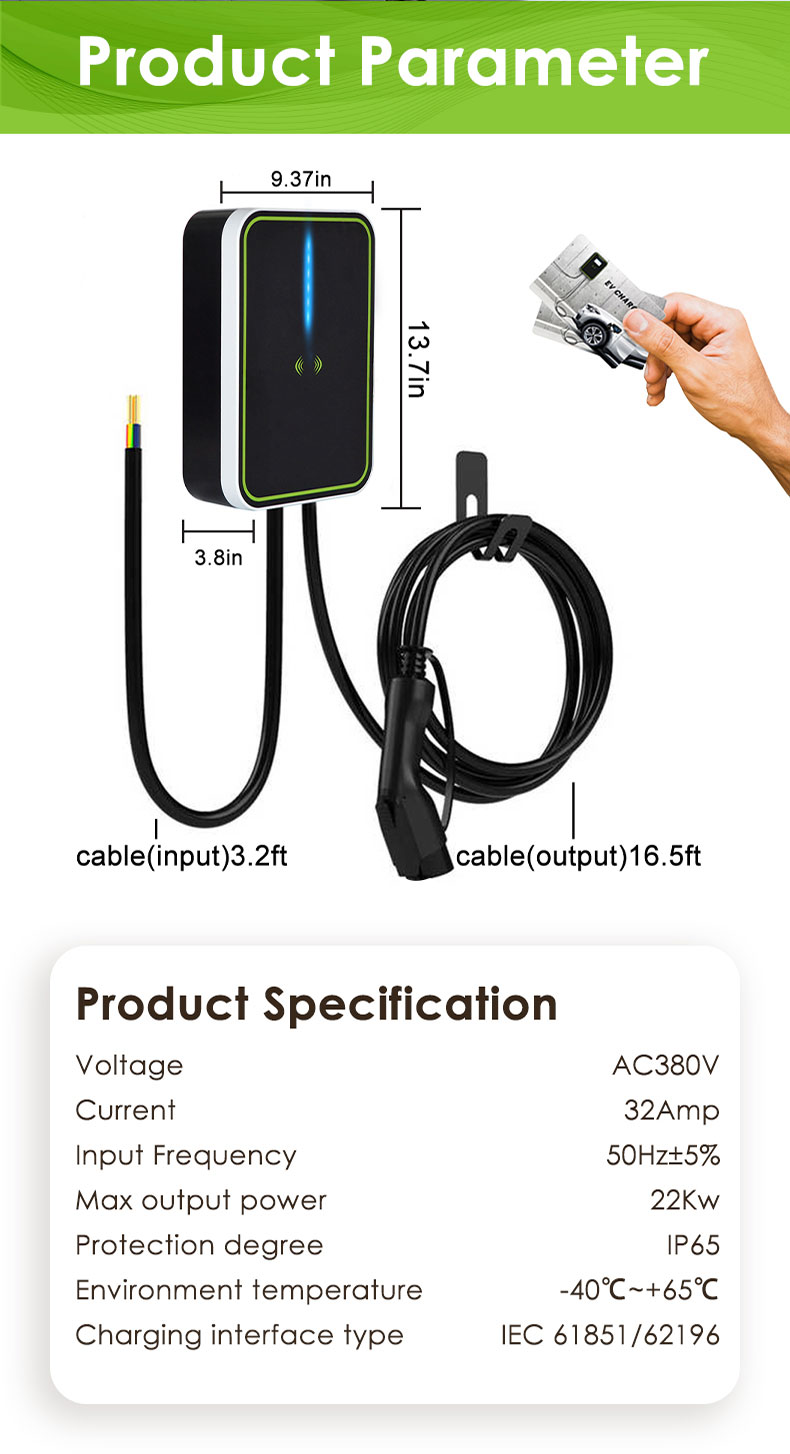

Structure Appearance

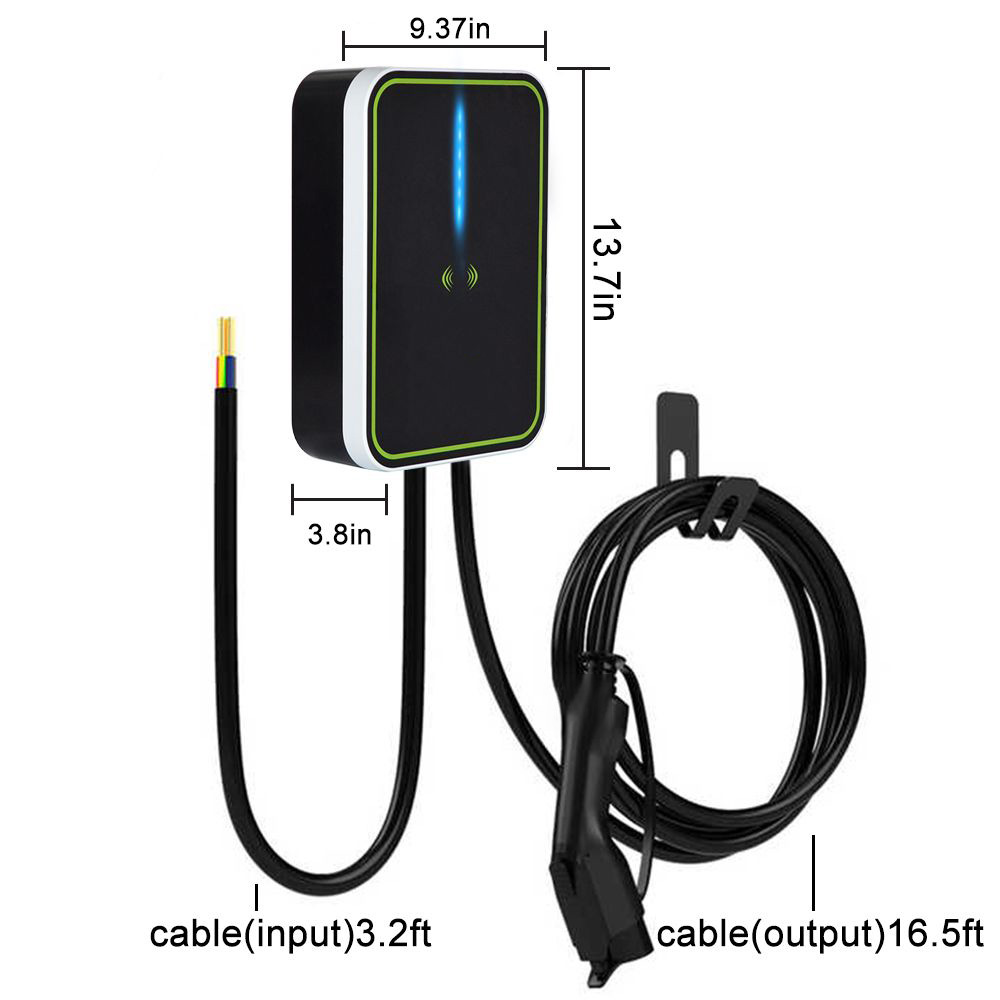

Dimension
350(H) × 240(W) × 95(D)mm
User Interface
Indicator light
Installation method

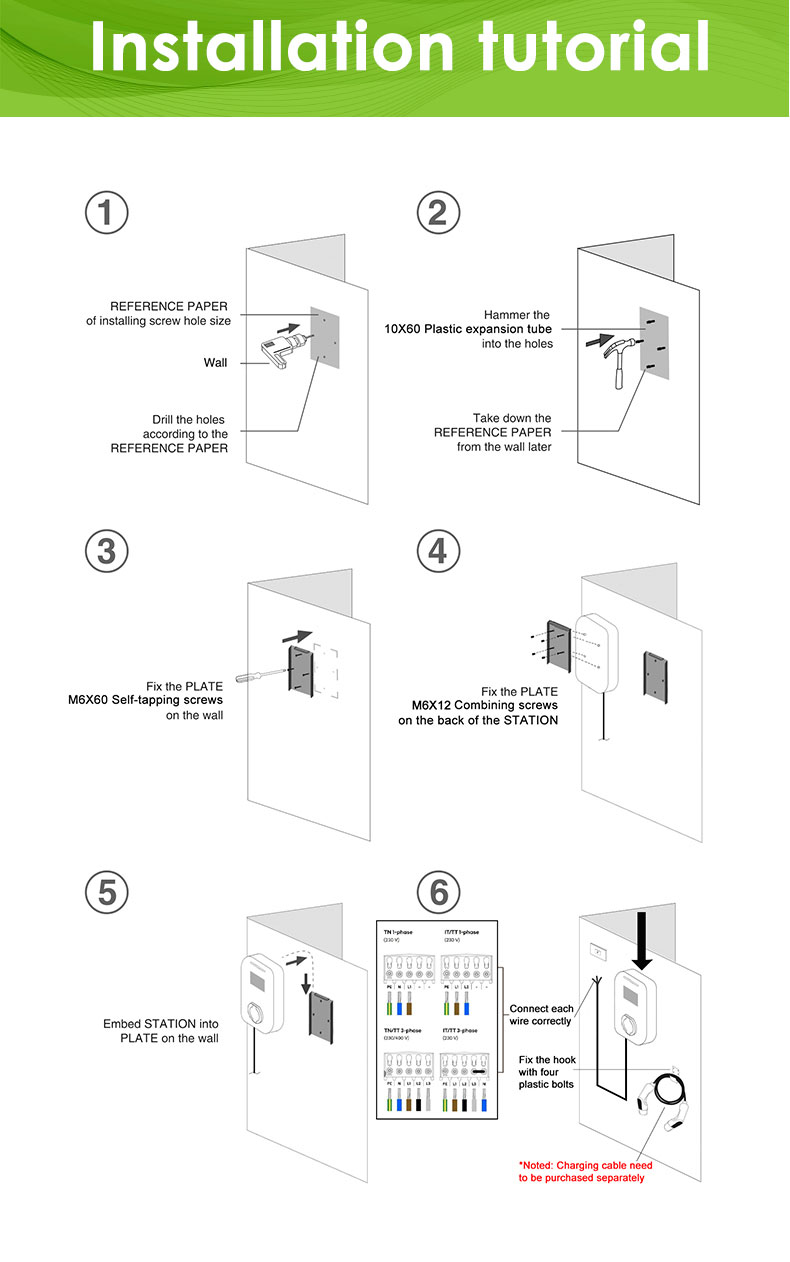

Wall-mounted Type/Floor-standing Type Installation
Wiring method
Bottom enter&out

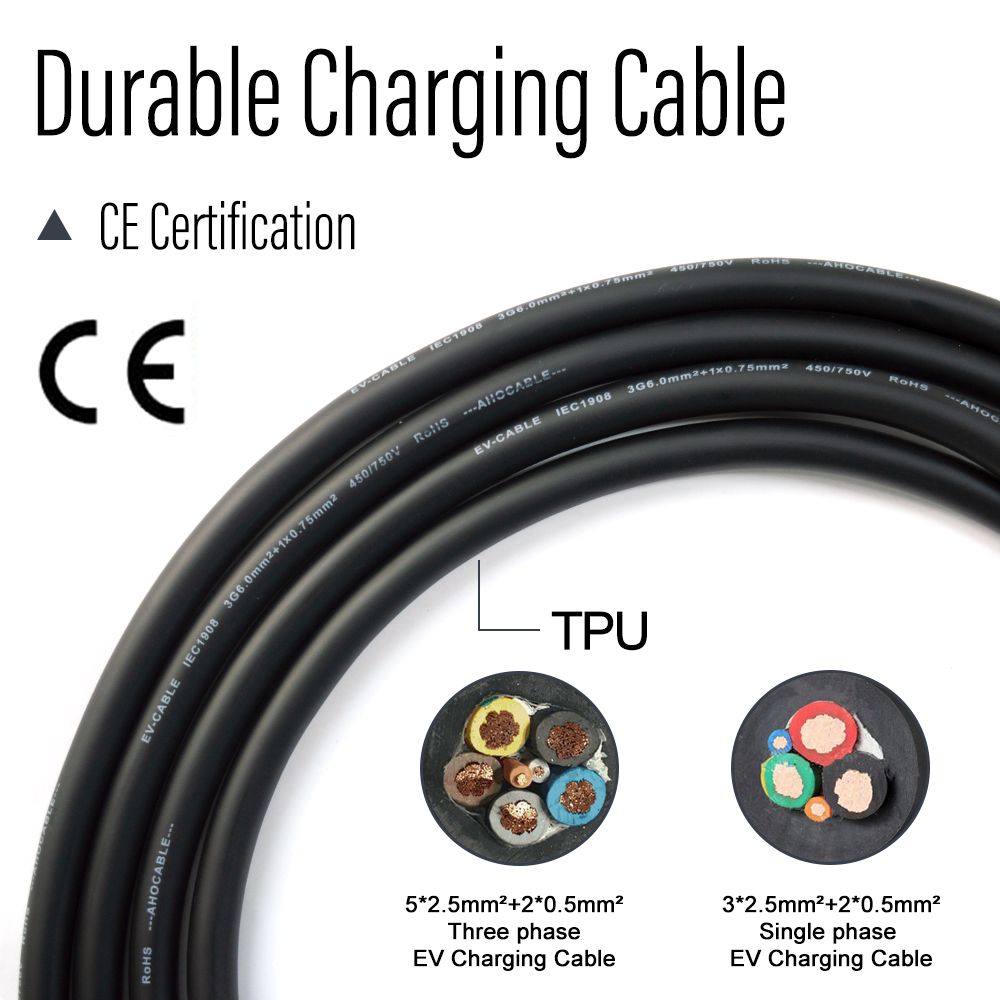

Cable length
5M(16.4FT) standard,7.5m / 10m or other size customizable
Weight
8.0kg (Including charging gun)
Electrical Specification
Input voltage
380V
Frequency
45-65Hz
Power rating
22KW
Measurement accuracy
OBM 1.0
Output voltage
AC380±20%
Output current
32A
Standby power
3KW
Function
Indicator light
YES
Display
NO
Protection
Design standard
IEC 61851
Protection
Overvoltage protection, undervoltage protection, overload protection, short circuit protection, ground protection, over temperature protection, lightning protection,type A 30mA + 6mA DC leakage protection
Operating Environment
Working temperature
-40-+65℃
Working Humidity
5%-95% no condensation
Working altitude
≤3000m
IP grade
≥IP65
Cooling mode
Natural cooling
Applicable
Indoor/Outdoor，No conductive dust, no corrosive gas, no explosive gas, no strong vibration
Special protection
UV resistance
MTBF
≥100000H
Optional
Installation components
Stand pillar (customize)
Communication interface
WIFI/4G/OCPP1.6/LAN (customize)

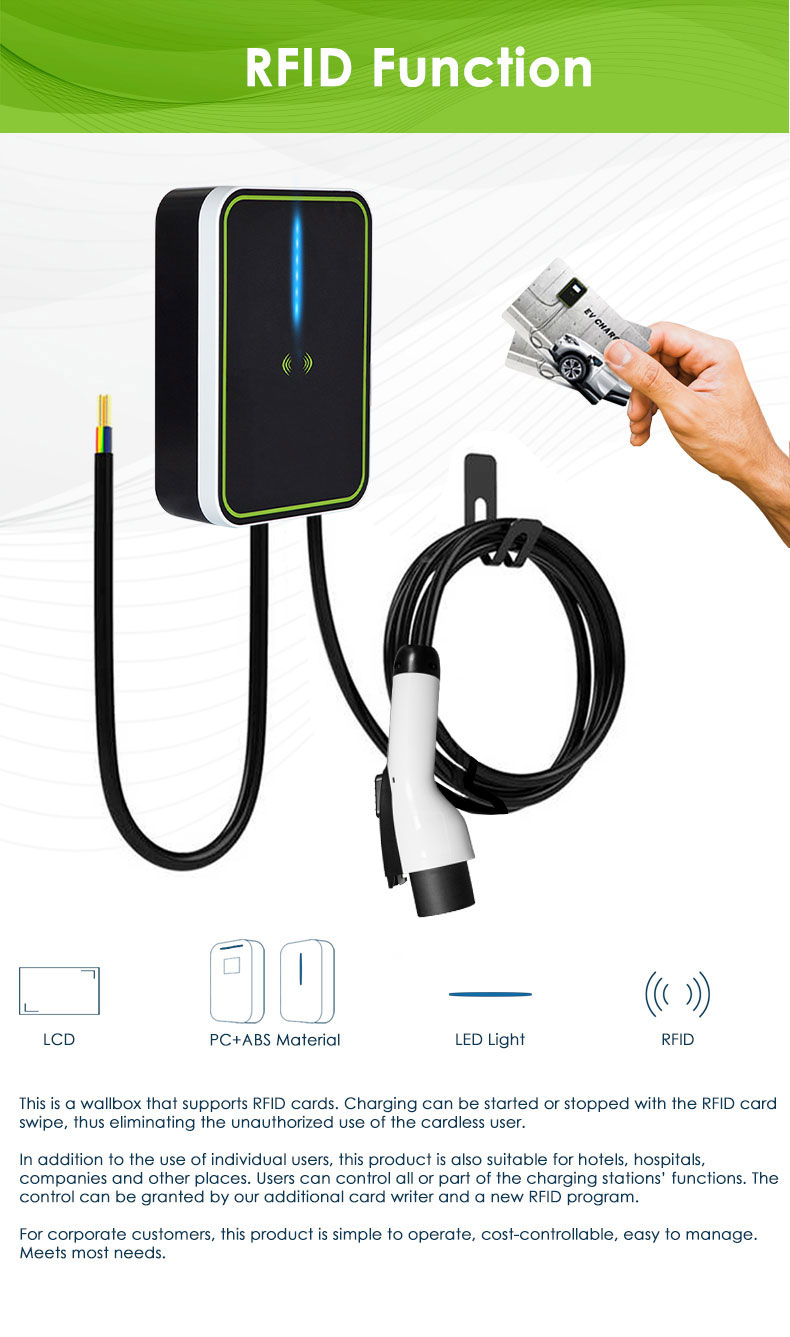

RFID
2 user cards (customize)
Leakage protection
Upgrade to Type A 30mA AC + 6mA DC（three phase）
Home load balancing
DLB(customize)
Socket outlet
Change charging cable to socket(not support SAE standard)
Product properties

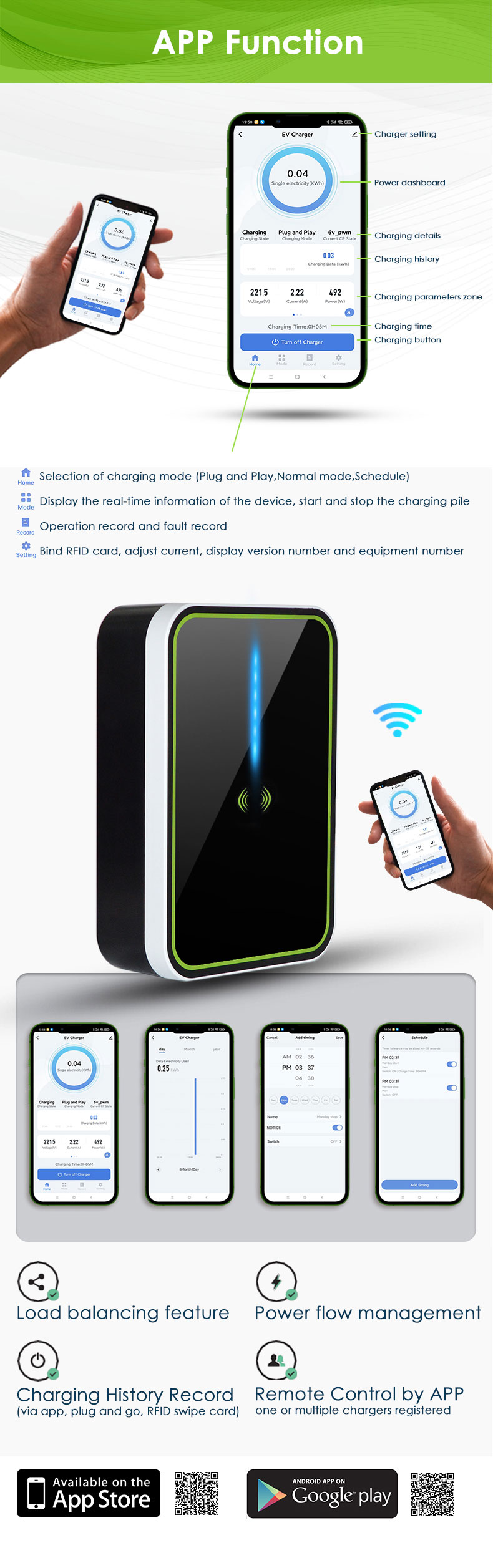

APP(customize)
