★4.3inch LCD - The screen shows you the charging status, and if there is a charging failure, it will let you know the corresponding problem through the screen and indicator lights.

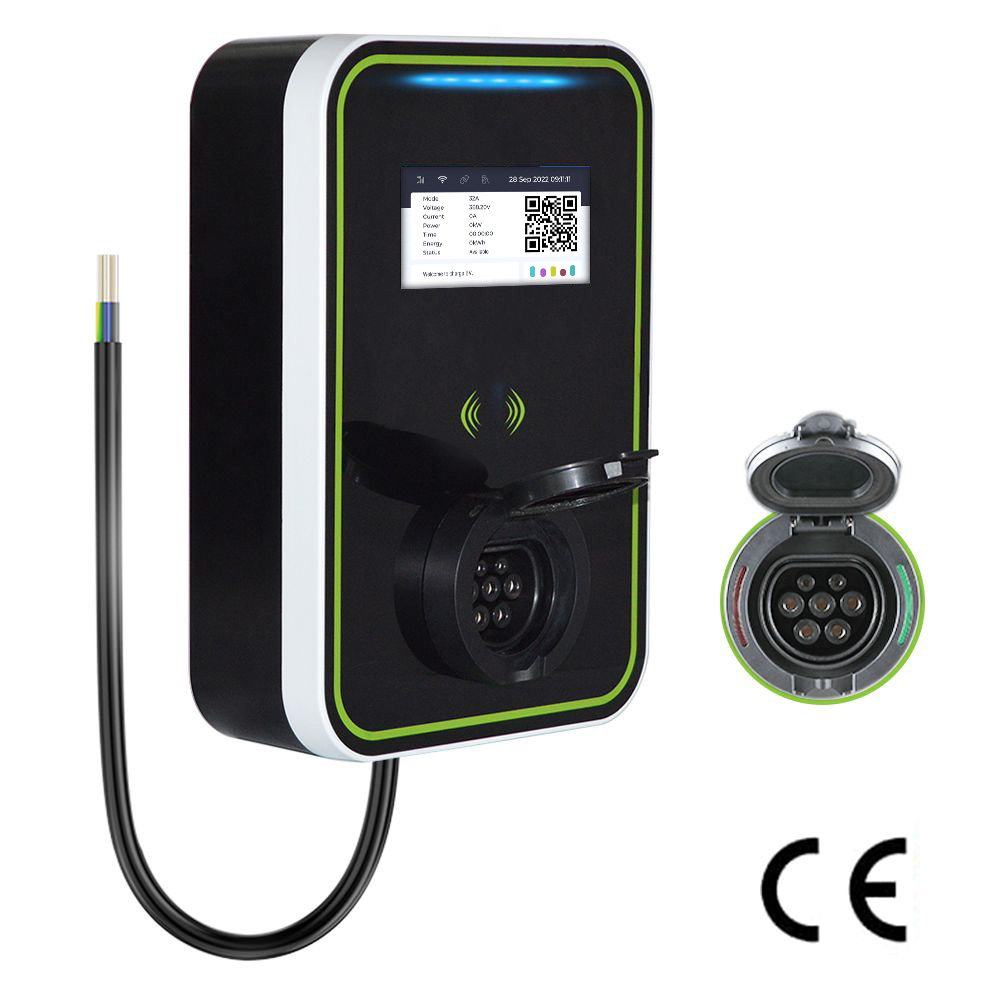

Structure Appearance

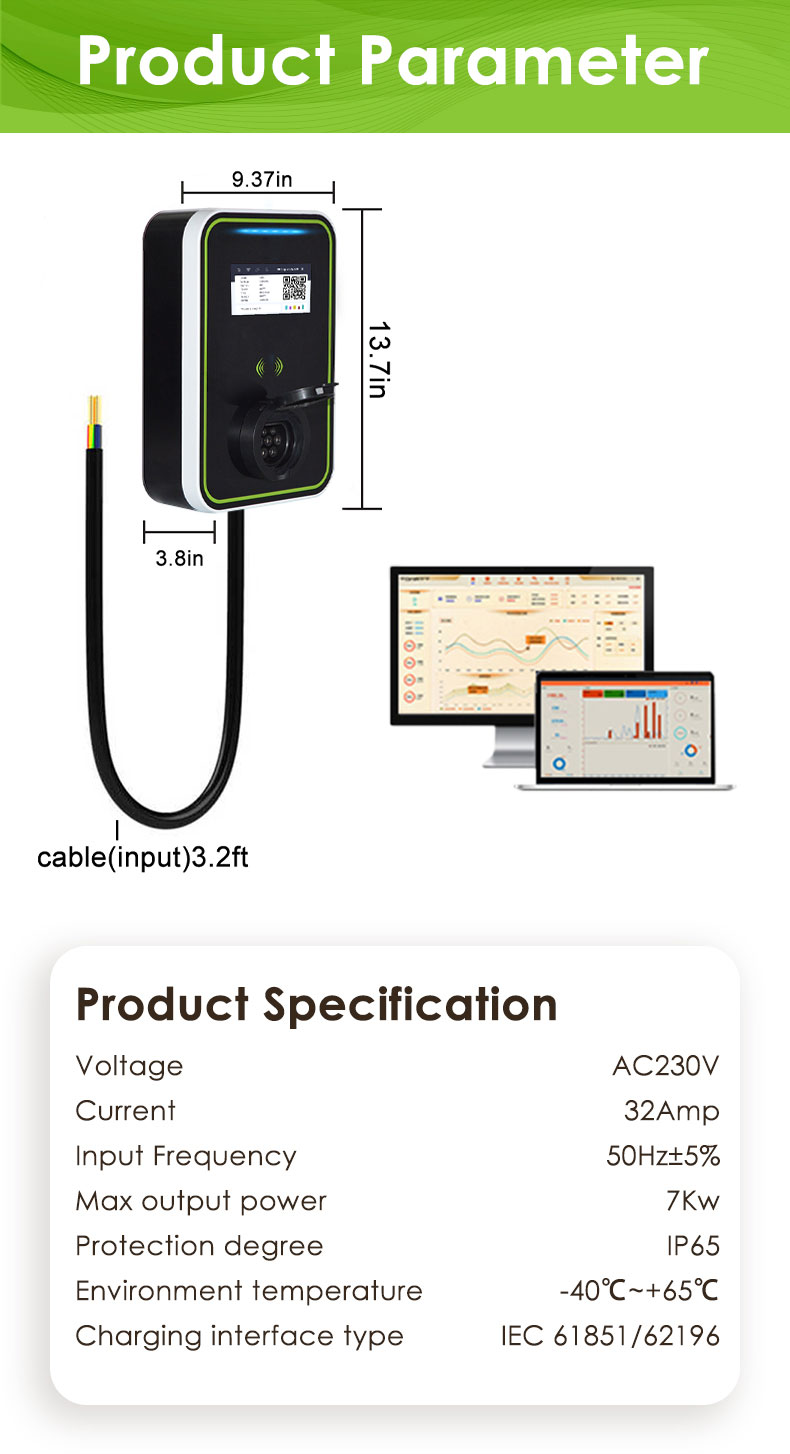

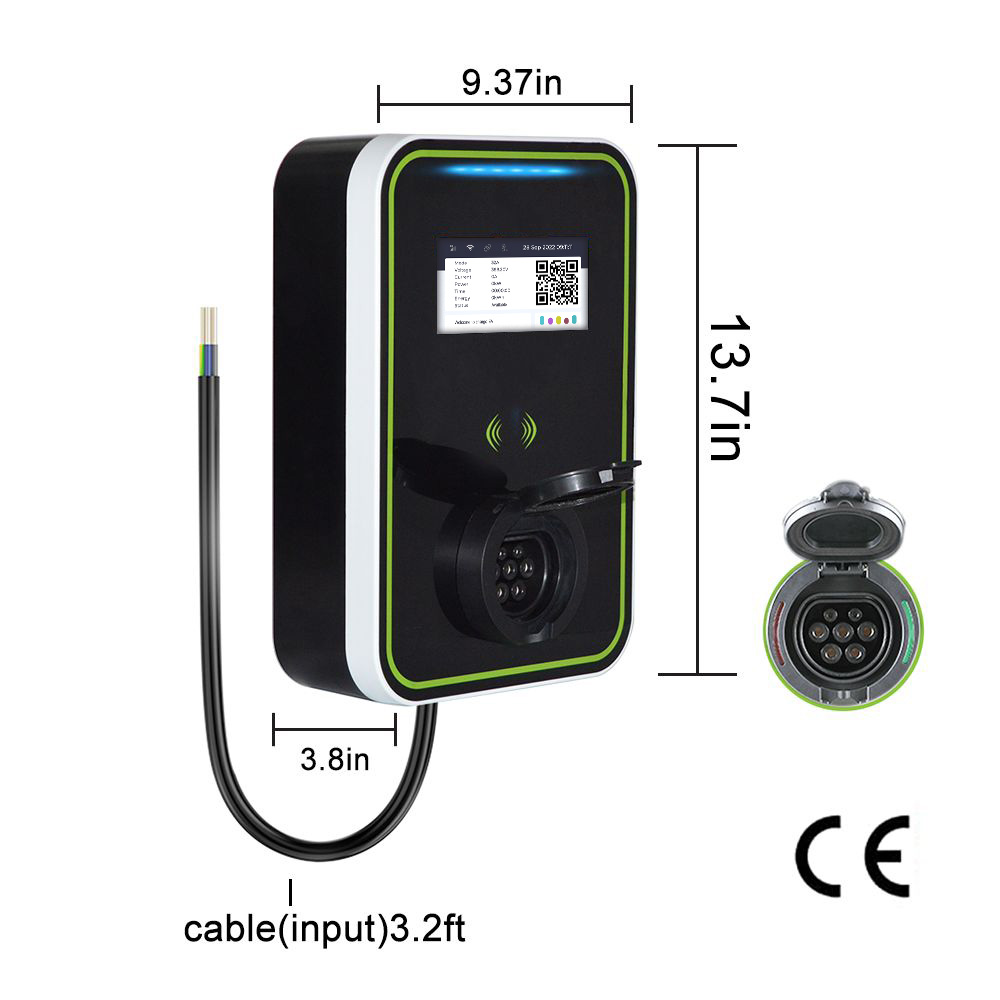

Dimension
350(H) × 240(W) × 95(D)mm
User Interface
4.3 inch display with Indicator light

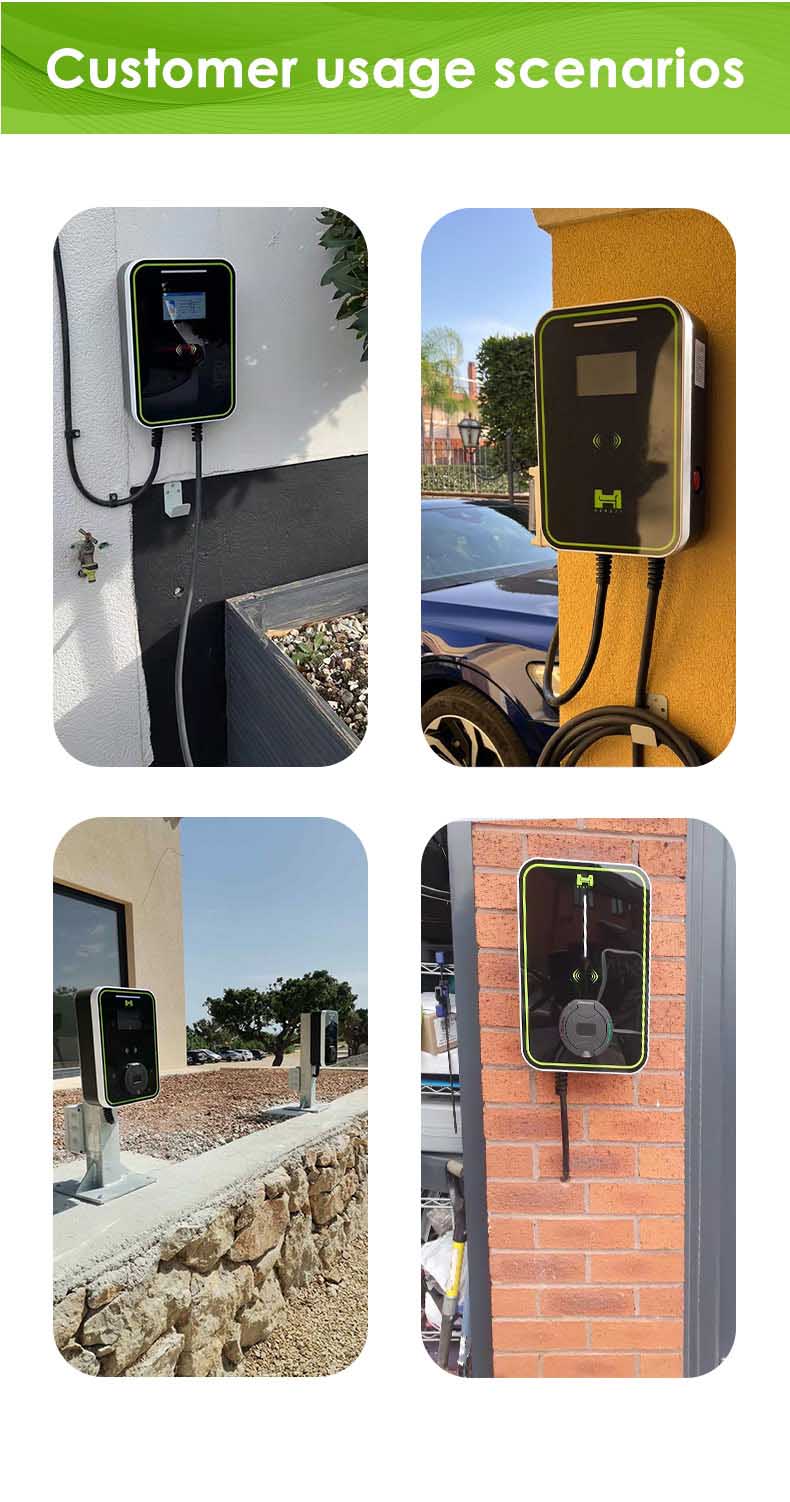

Installation method
Wall-mounted Type/Floor-standing Type Installation
Wiring method
Bottom enter&out
Cable length
INPUT CABLE 1M
Weight
7.0kg (no charging gun)
Electrical Specification
Input voltage
220V
Frequency
45-65Hz
Power rating
7KW
Measurement accuracy
OBM 1.0
Output voltage
AC220±20%
Output current
32A
Standby power
5W
Function
Indicator light
YES
Display
YES
Protection
Design standard
IEC 61851
Protection
Overvoltage protection, undervoltage protection, overload protection, short circuit protection, ground protection, over temperature protection, lightning protection,type A 30mA leakage protection
Operating Environment
Working temperature
-40-+65℃
Working Humidity
5%-95% no condensation
Working altitude
≤3000m
IP grade
≥IP65
Cooling mode
Natural cooling
Applicable
Indoor/Outdoor，No conductive dust, no corrosive gas, no explosive gas, no strong vibration
Special protection
UV resistance
MTBF
≥100000H
Optional

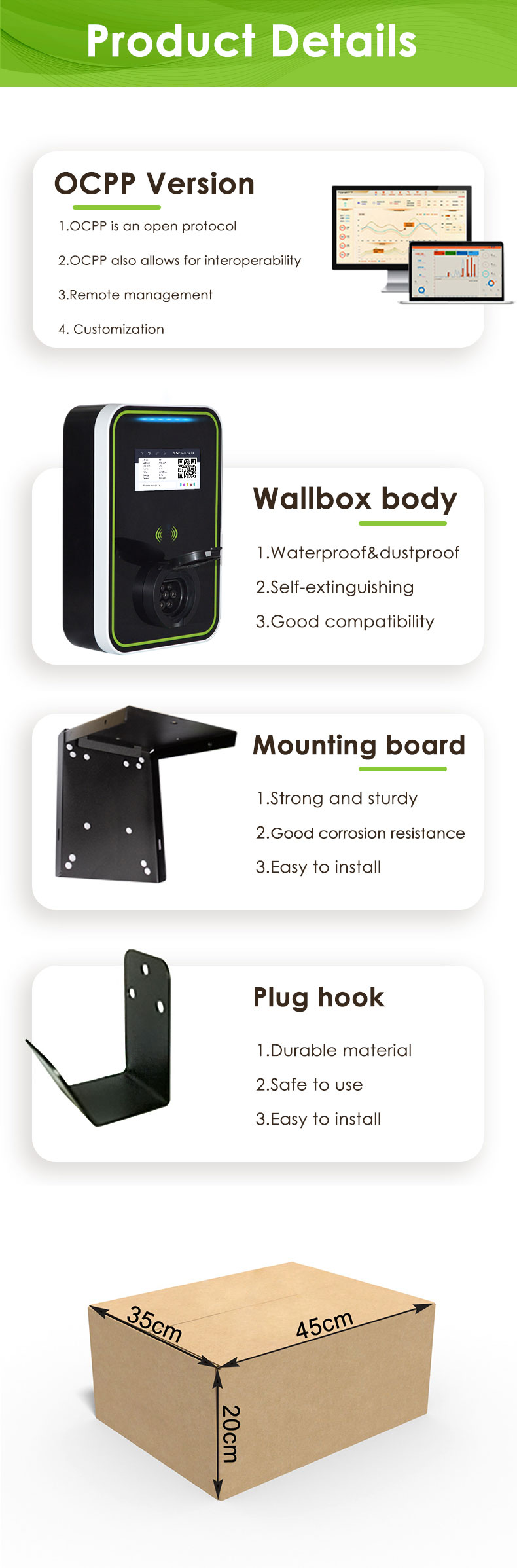

Installation components

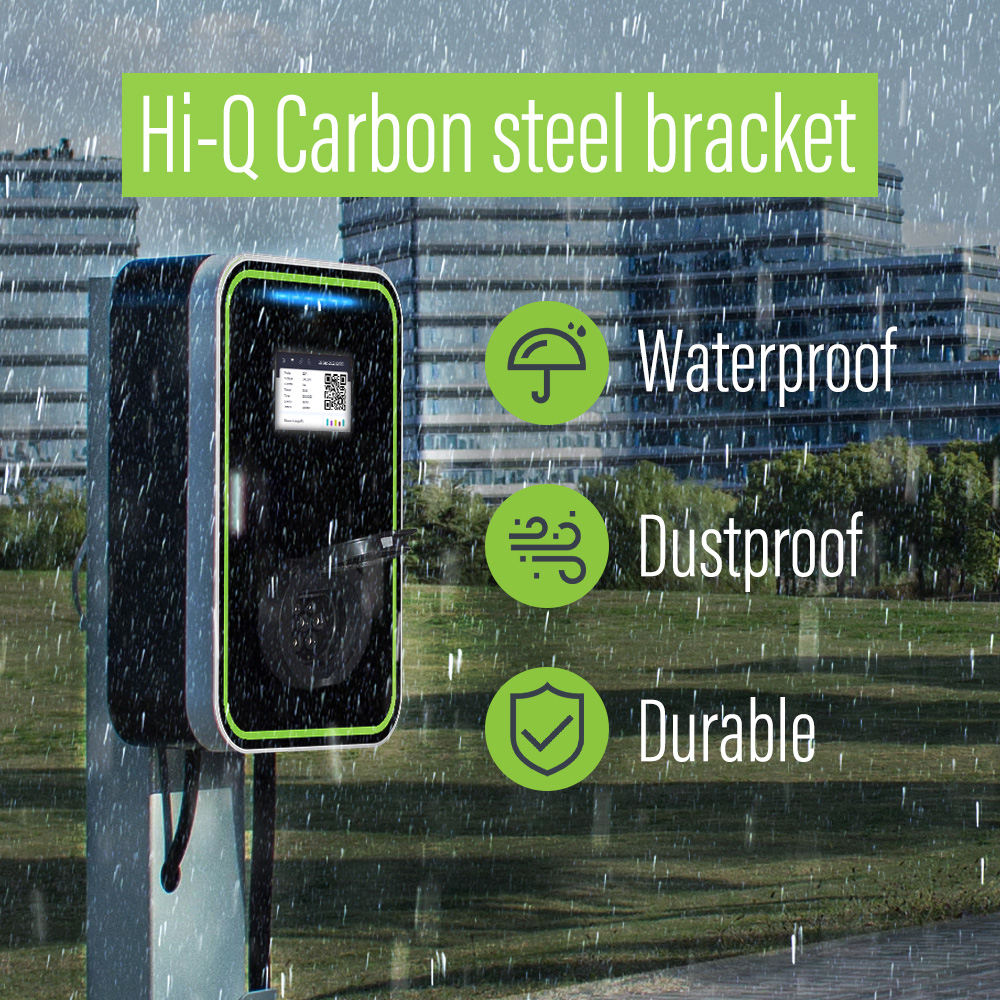

Stand pillar (customize)

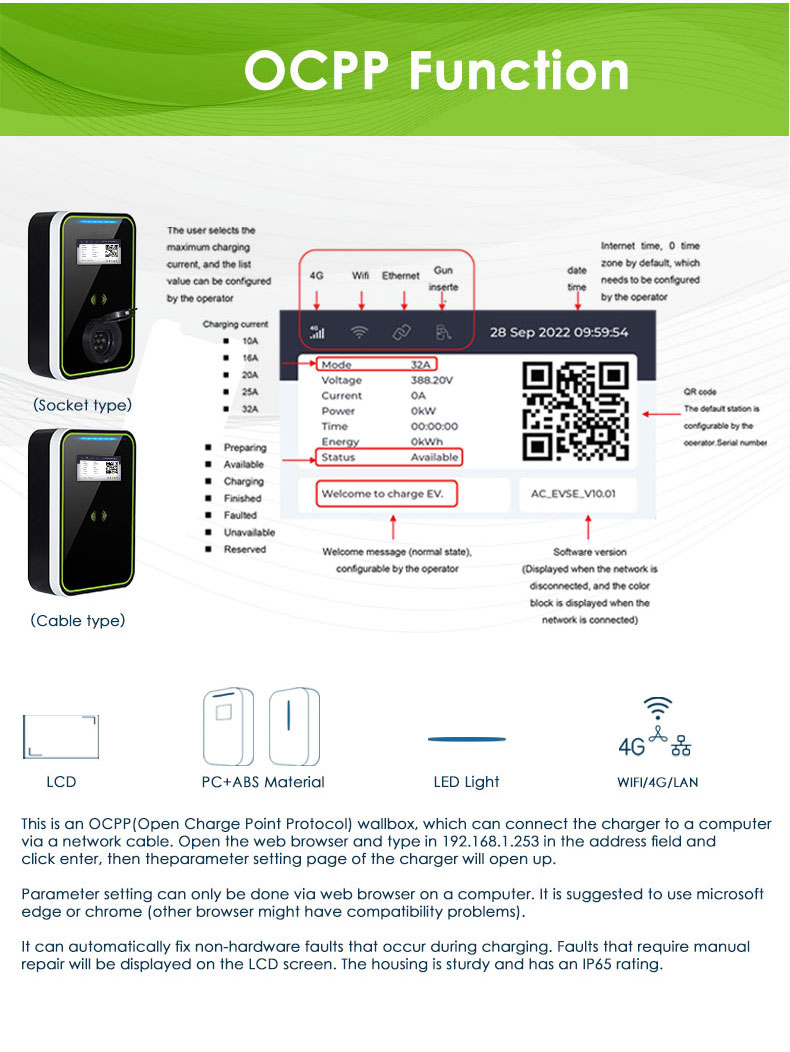

Communication interface
WIFI/4G/OCPP1.6/LAN (customize)
RFID
2 user cards (customize)
Leakage protection
Upgrade to Type A 30mA AC (single phase)
Home load balancing
DLB(customize)
Socket outlet
Change charging cable to socket(not support SAE standard)
Product properties
APP(customize)
