Structure Appearance

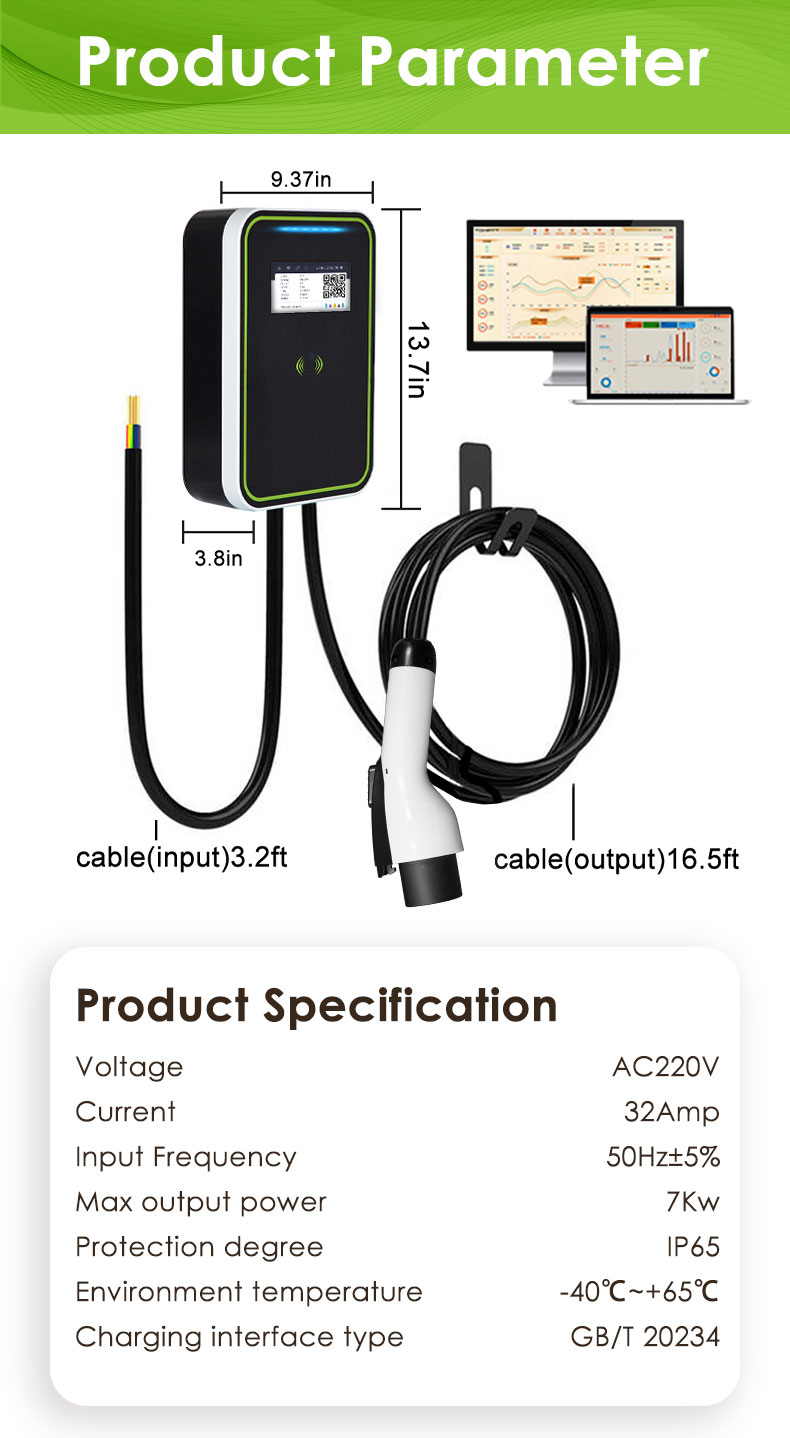

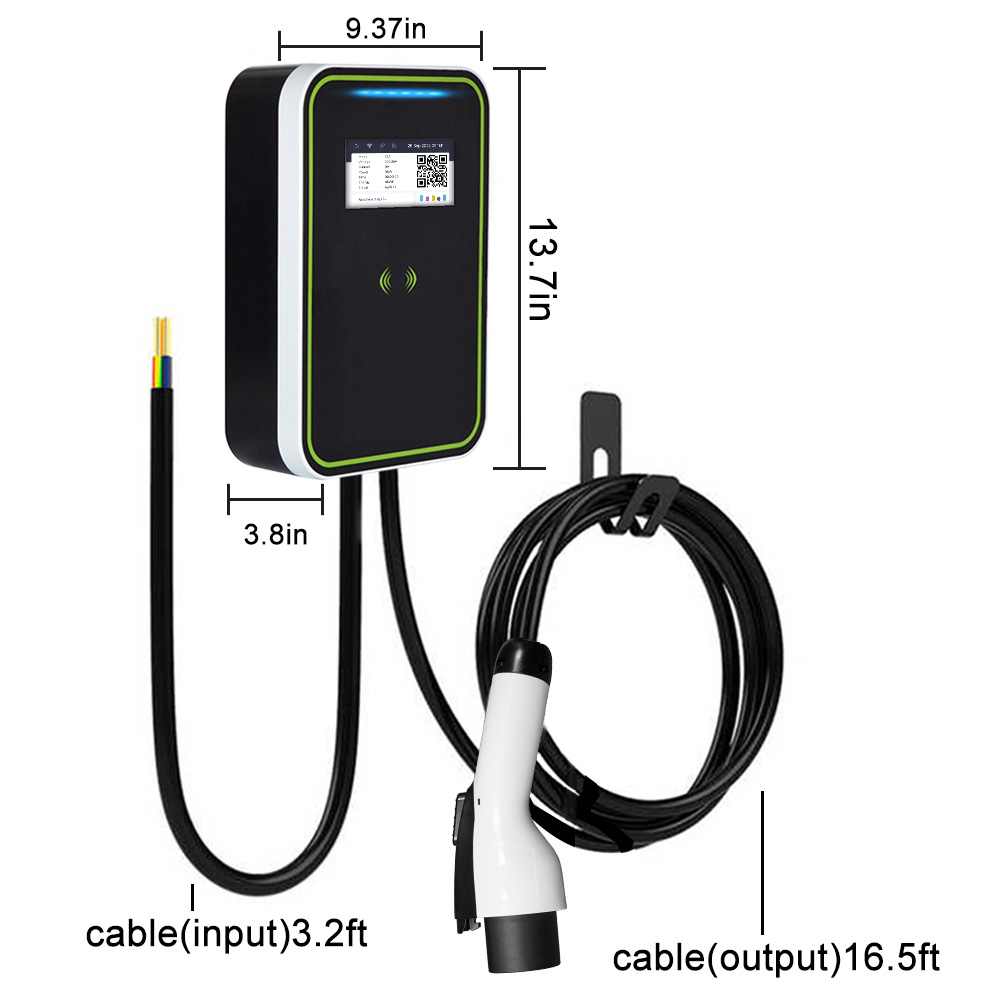

Dimension
350(H) × 240(W) × 95(D)mm
User Interface
4.3 inch display with Indicator light
Installation method

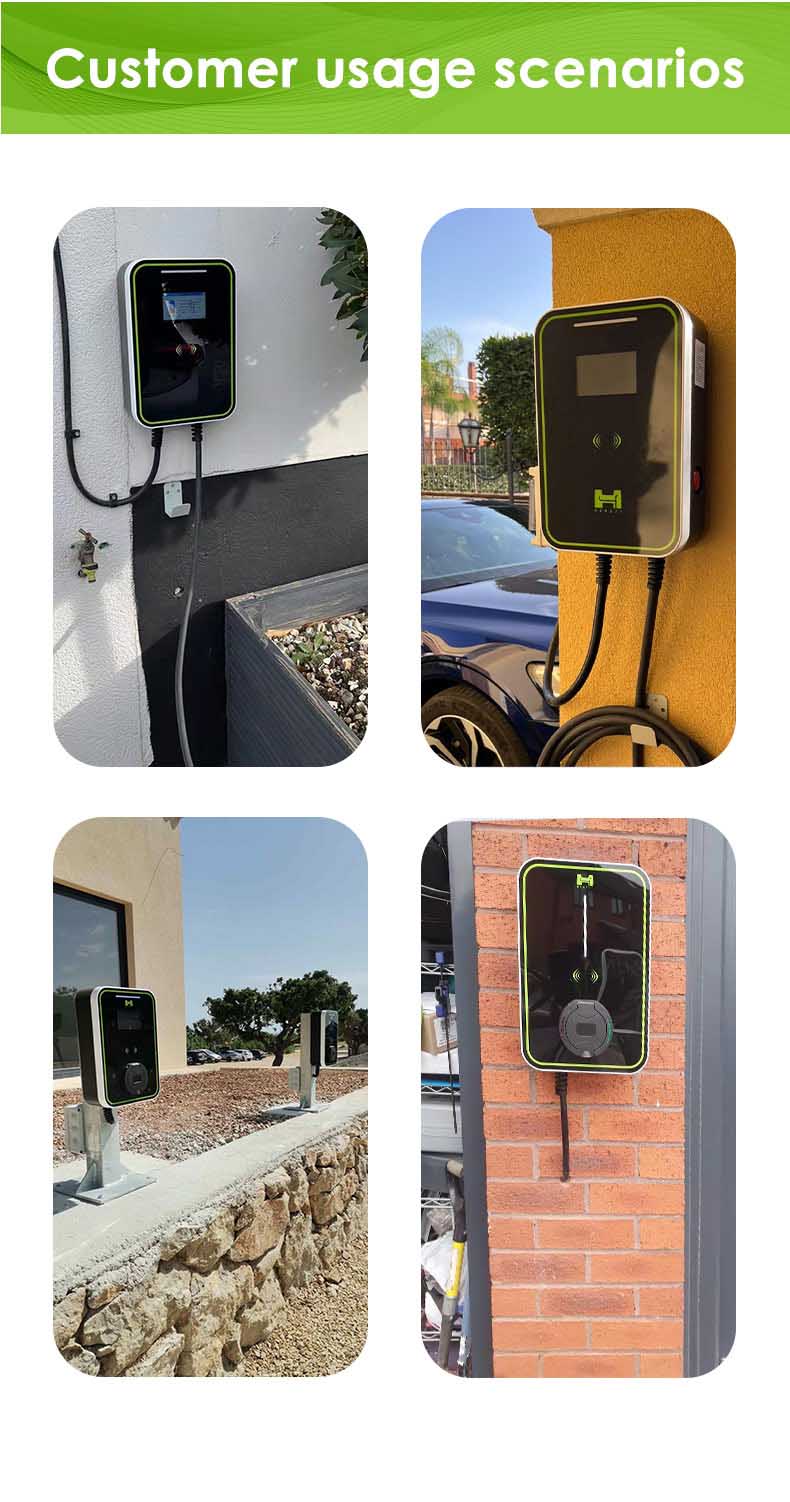

Wall-mounted Type/Floor-standing Type Installation
Wiring method
Bottom enter&out
Cable length
5M(16.4FT) standard,7.5m / 10m or other size customizable
Weight
8.0kg (Including charging gun)
Electrical Specification
Input voltage
220V
Frequency
45-65Hz
Power rating
7KW
Measurement accuracy
OBM 1.0
Output voltage
AC220±20%
Output current
32A
Standby power
5W
Function
Indicator light
YES
Display
YES
Protection
Design standard
GB/T 20234
Protection
Overvoltage protection, undervoltage protection, overload protection, short circuit protection, ground protection, over temperature protection, lightning protection,type A 30mA leakage protection
Operating Environment
Working temperature
-40-+65℃
Working Humidity
5%-95% no condensation
Working altitude
≤3000m

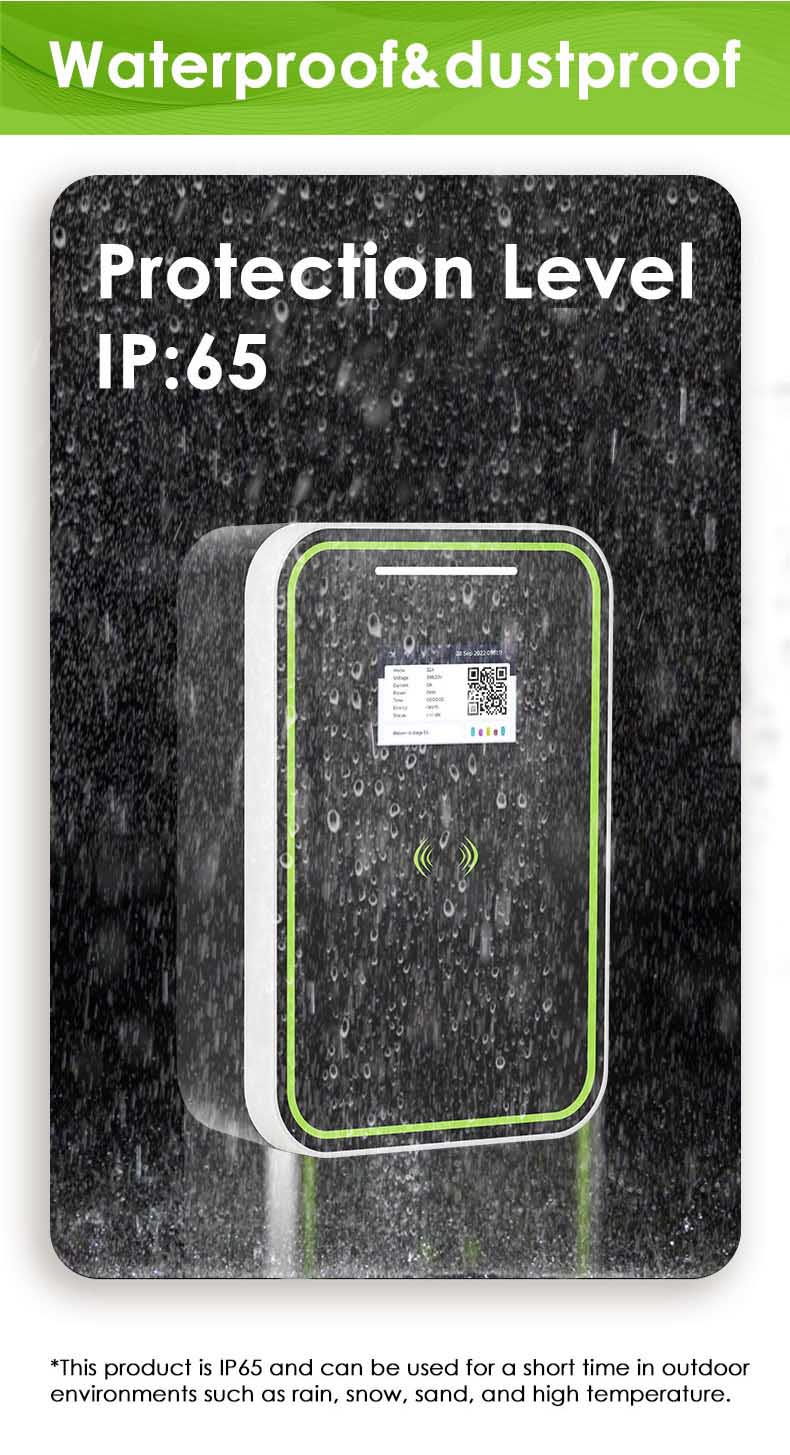

IP grade
≥IP65
Cooling mode
Natural cooling
Applicable
Indoor/Outdoor,No conductive dust, no corrosive gas, no explosive gas, no strong vibration
Special protection
UV resistance
MTBF
≥100000H
Optional
Installation components

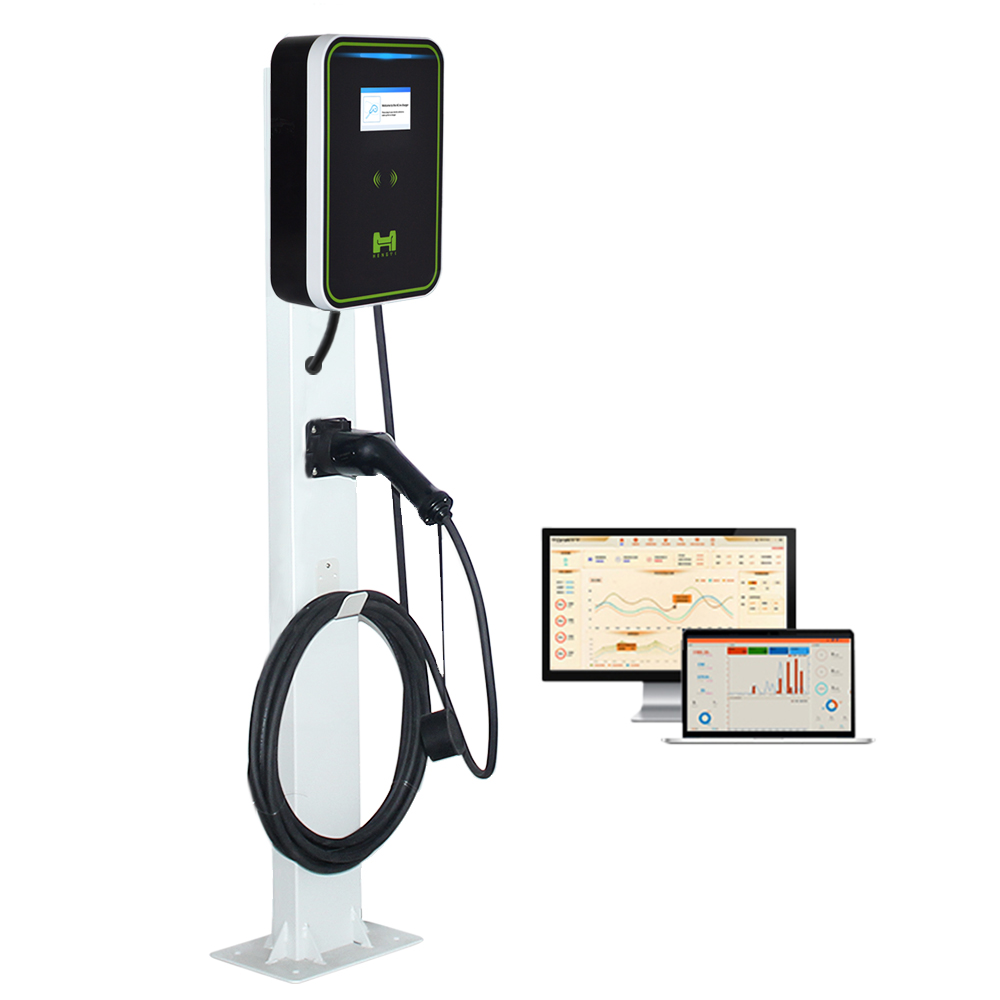

Stand pillar (customize)
Communication interface

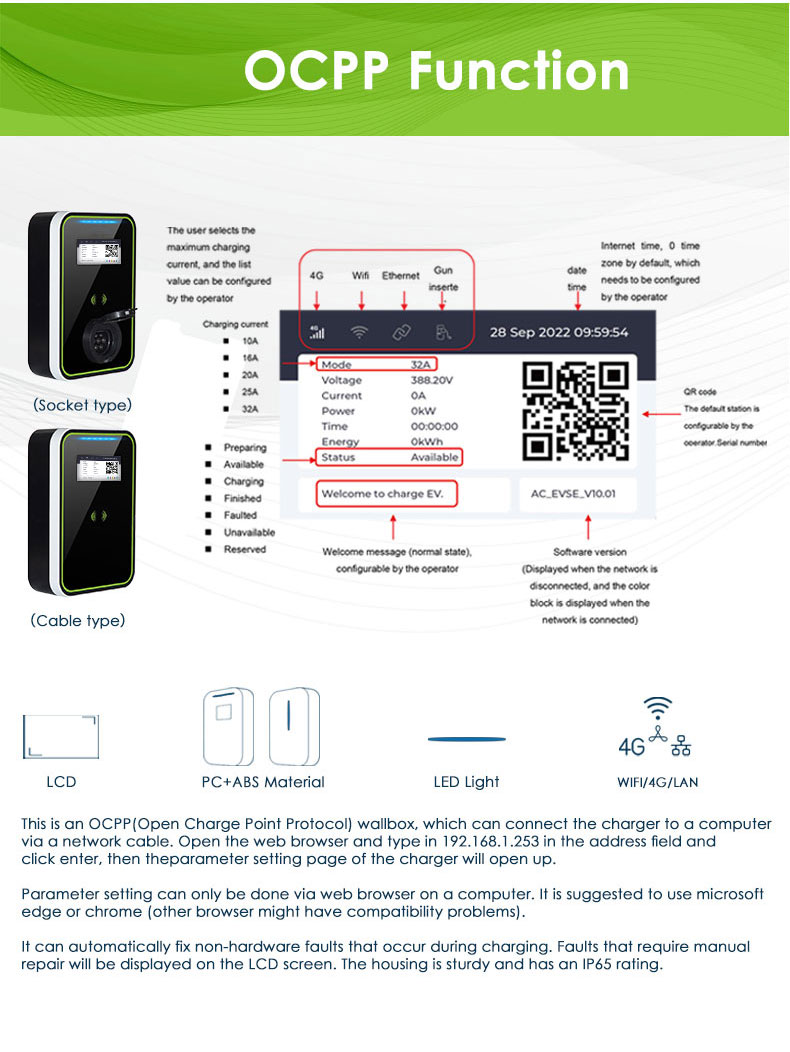

WIFI/4G/OCPP1.6/LAN (customize)
RFID
2 user cards (customize)
Leakage protection
Upgrade to Type A 30mA AC (single phase)
Home load balancing
DLB(customize)
Socket outlet
Change charging cable to socket(not support SAE standard)
Product properties
APP(customize)
