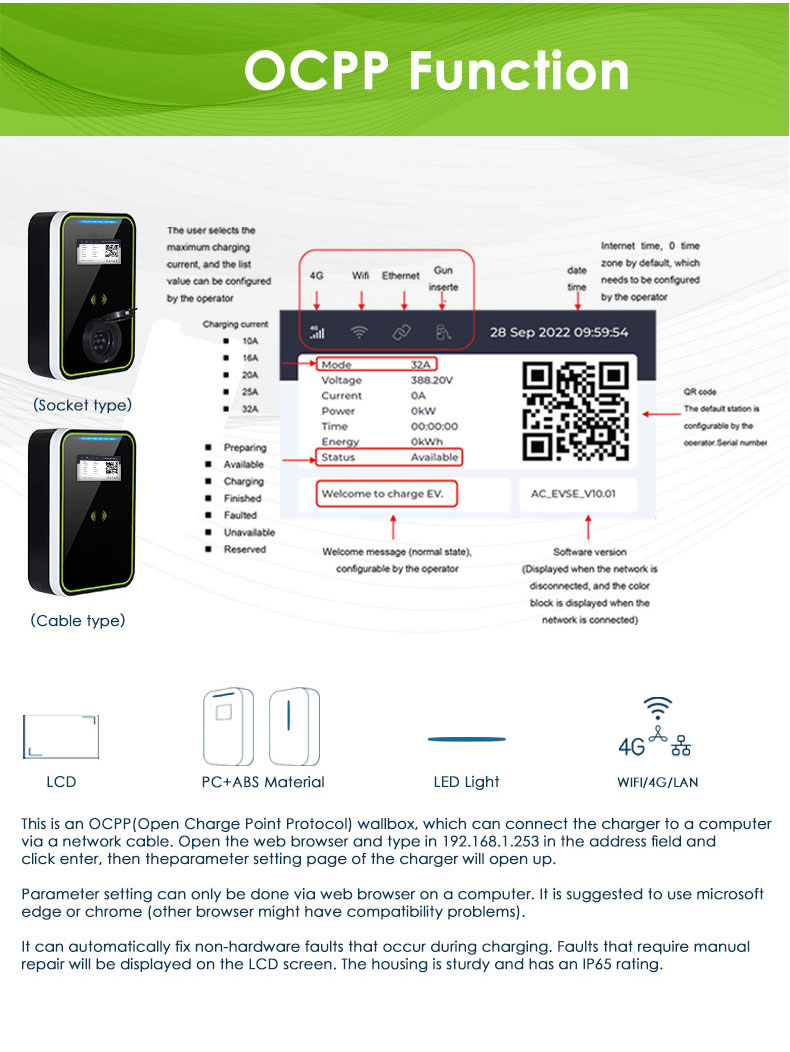

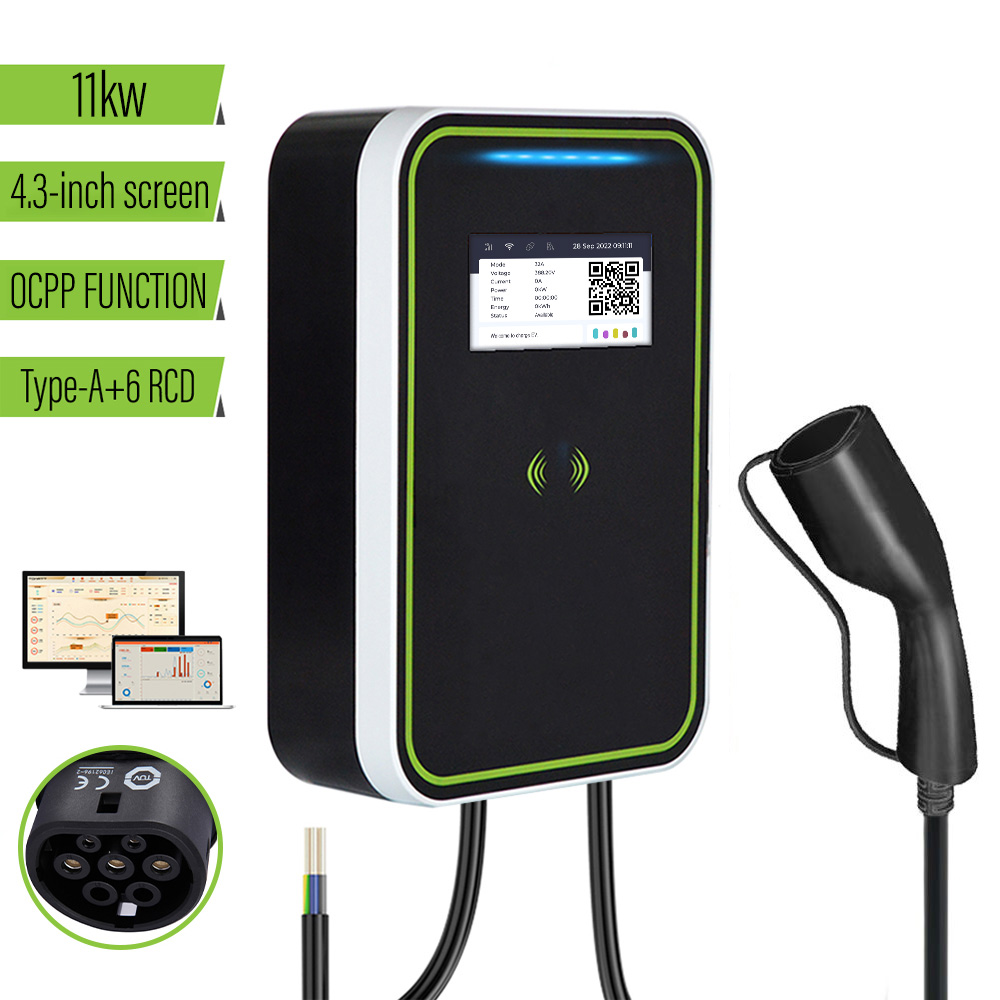

★4.3inch LCD - The screen shows you the charging status, and if there is a charging failure, it will let you know the corresponding problem through the screen and indicator lights.
Structure Appearance |

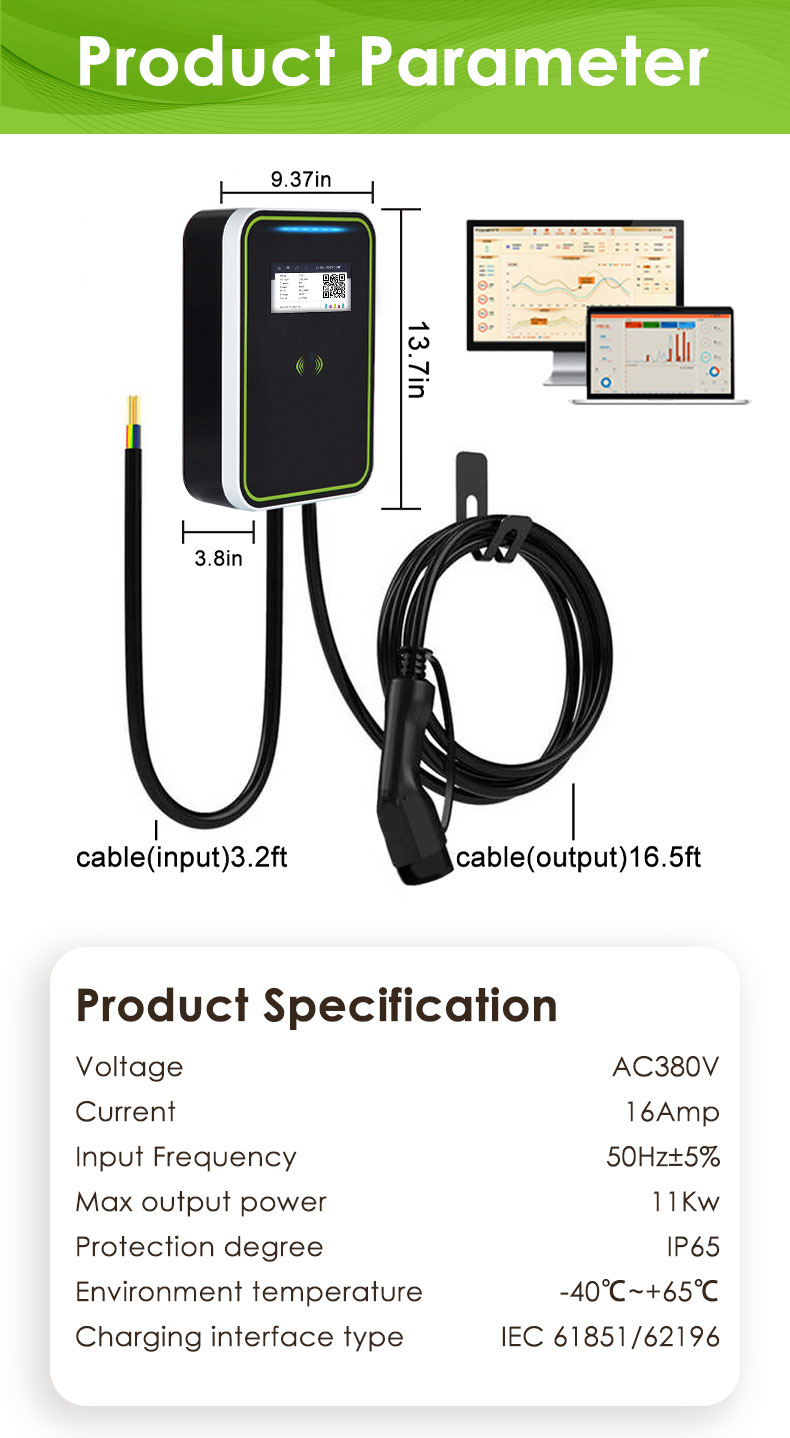

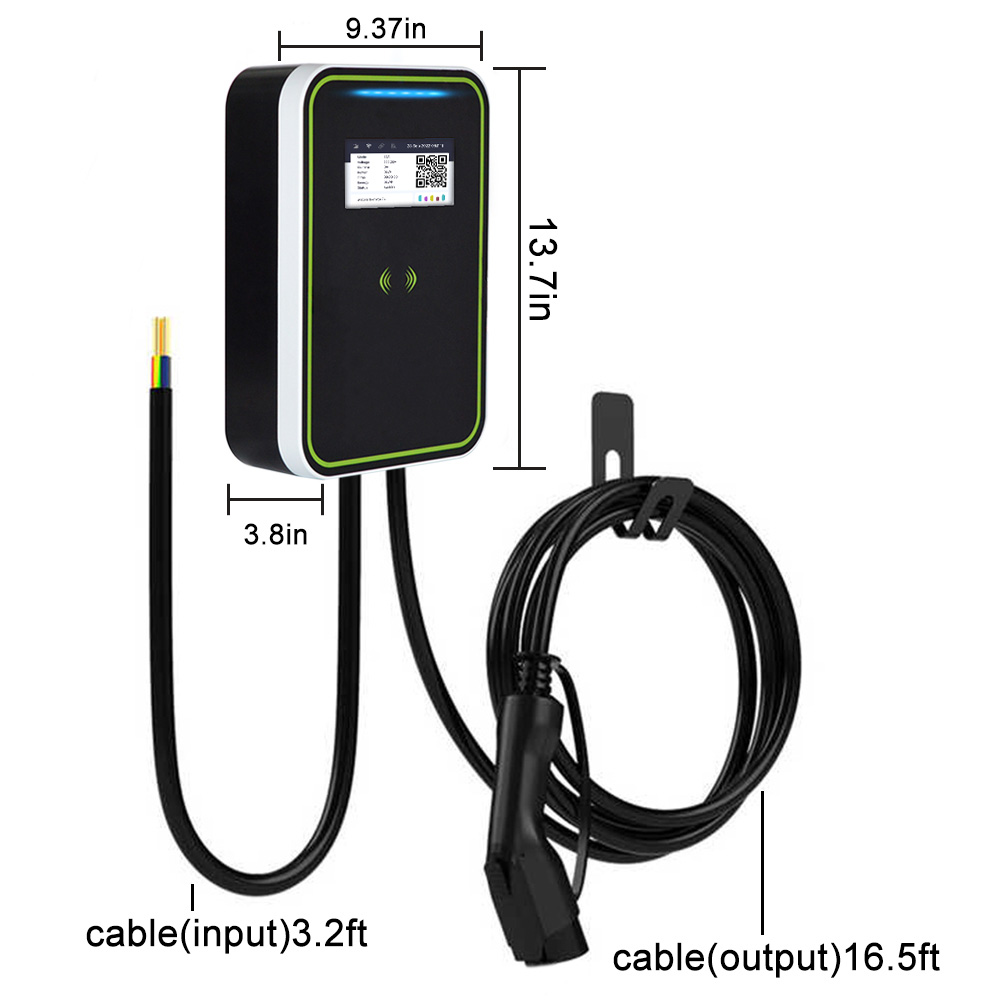

Dimension |
350(H) × 240(W) × 95(D)mm |
User Interface |
4.3 inch display with Indicator light |
|
Installation method |

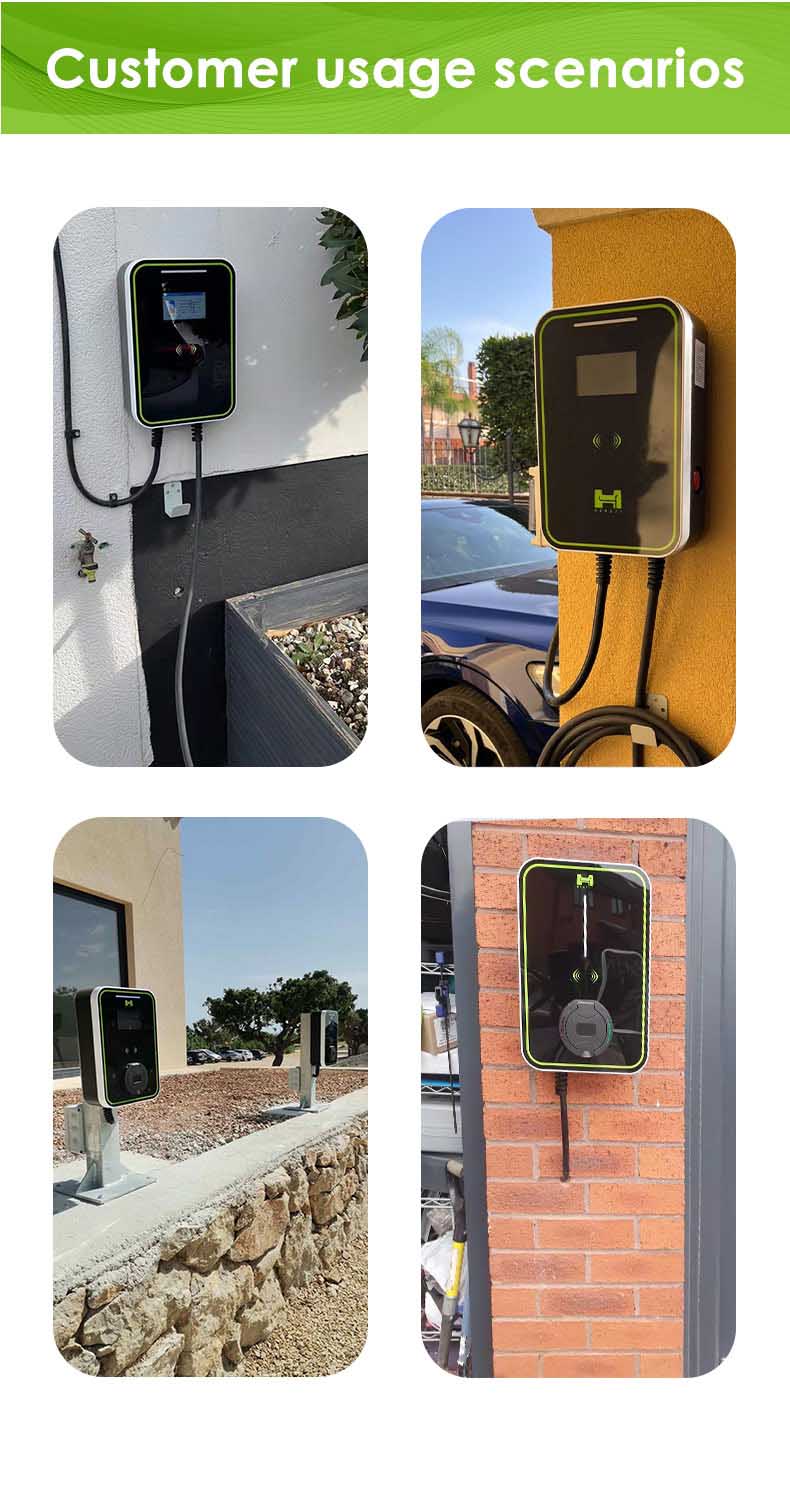

Wall-mounted Type/Floor-standing Type Installation |
|
Wiring method |
Bottom enter&out |
|
Cable length |
5M(16.4FT) standard,7.5m / 10m or other size customizable |
|
Weight |
8.0kg (Including charging gun) |
|
Electrical Specification |
Input voltage |
380V |
Frequency |
45-65Hz |
|
Power rating |
11KW |
|
Measurement accuracy |
OBM 1.0 |
|
Output voltage |
AC380±20% |
|
Output current |
16A |
|
Standby power |
5W |
|
Function |
Indicator light |
YES |
Display |
YES |
|
Protection |
Design standard |
IEC 61851 |
Protection |
Overvoltage protection, undervoltage protection, overload protection, short circuit protection, ground protection, over temperature protection, lightning protection,type A 30mA + 6mA DC leakage protection |
|
Operating Environment |
Working temperature |
-40-+65℃ |
Working Humidity |
5%-95% no condensation |
|
Working altitude |
≤3000m |
|

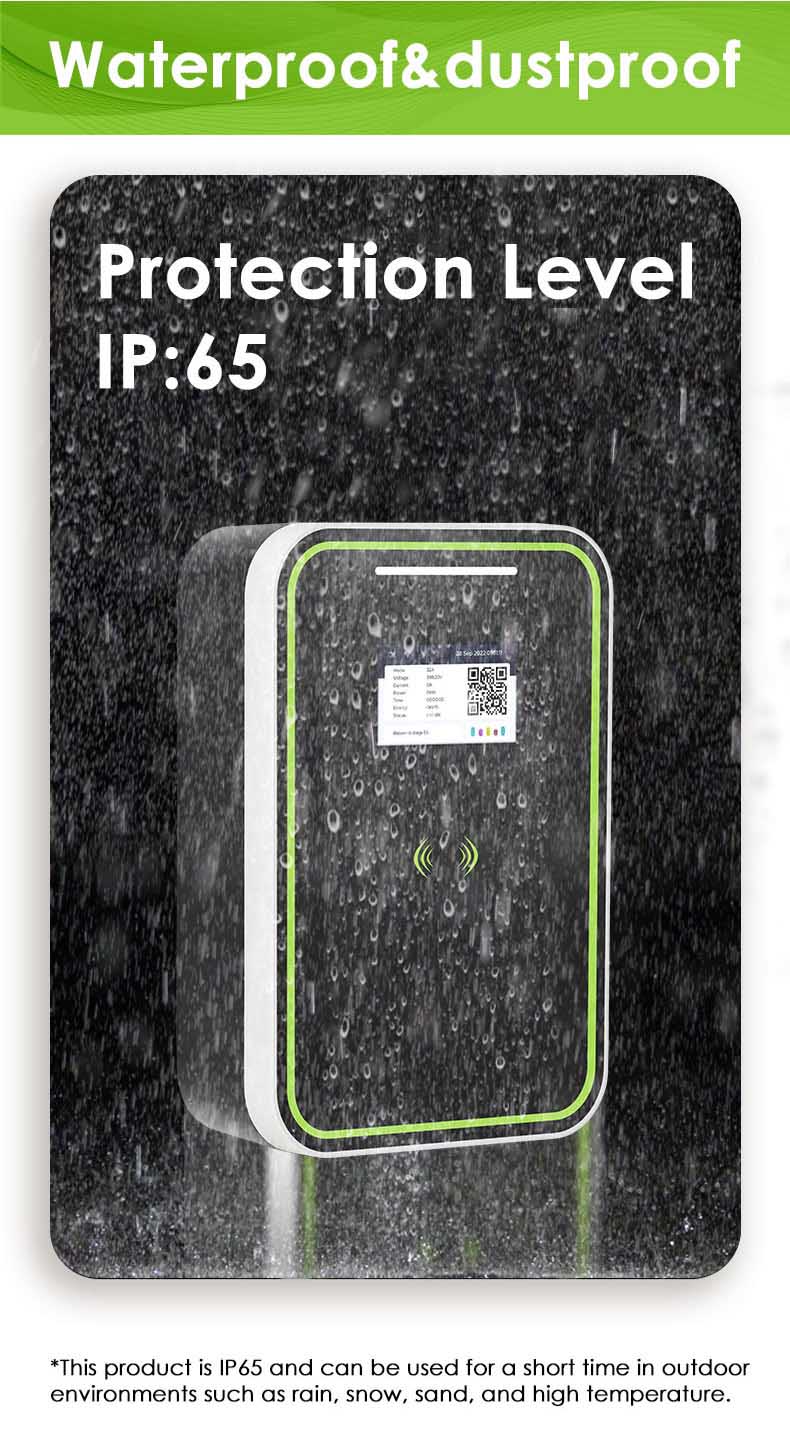

IP grade |
≥IP65 |
|
Cooling mode |
Natural cooling |
|
Applicable |
Indoor/Outdoor,No conductive dust, no corrosive gas, no explosive gas, no strong vibration |
|
Special protection |
UV resistance |
|
MTBF |
≥100000H |
|
Optional |
Installation components |

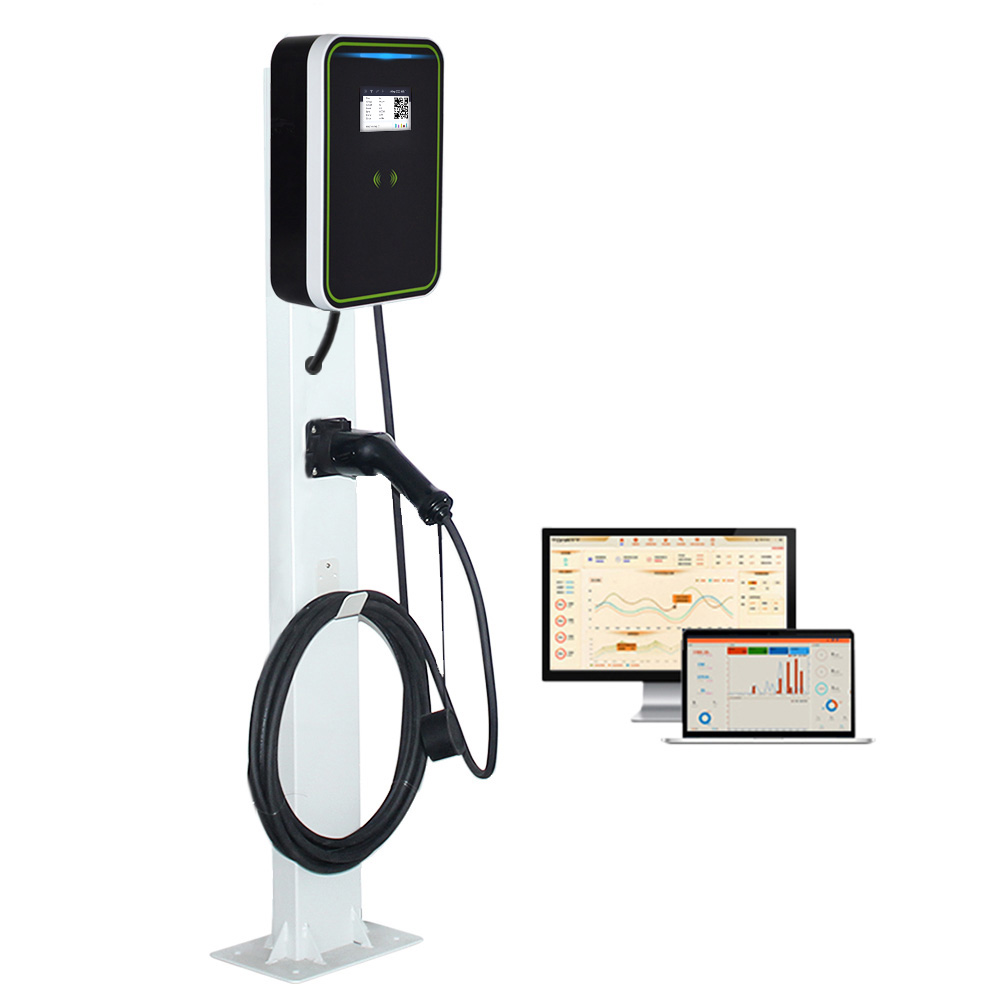

Stand pillar (customize) |
Communication interface |
WIFI/4G/OCPP1.6/LAN (customize) |
|
RFID |
2 user cards (customize) |
|
Leakage protection |
Upgrade to Type A 30mA AC + 6mA DC(three phase) |
|
Home load balancing |
DLB(customize) |
|
Socket outlet |
Change charging cable to socket(not support SAE standard) |
|
Product properties |
APP(customize) |
