Structure Appearance |
Dimension |
195(H) × 95(W) × 55(D)mm |
|
User Interface |

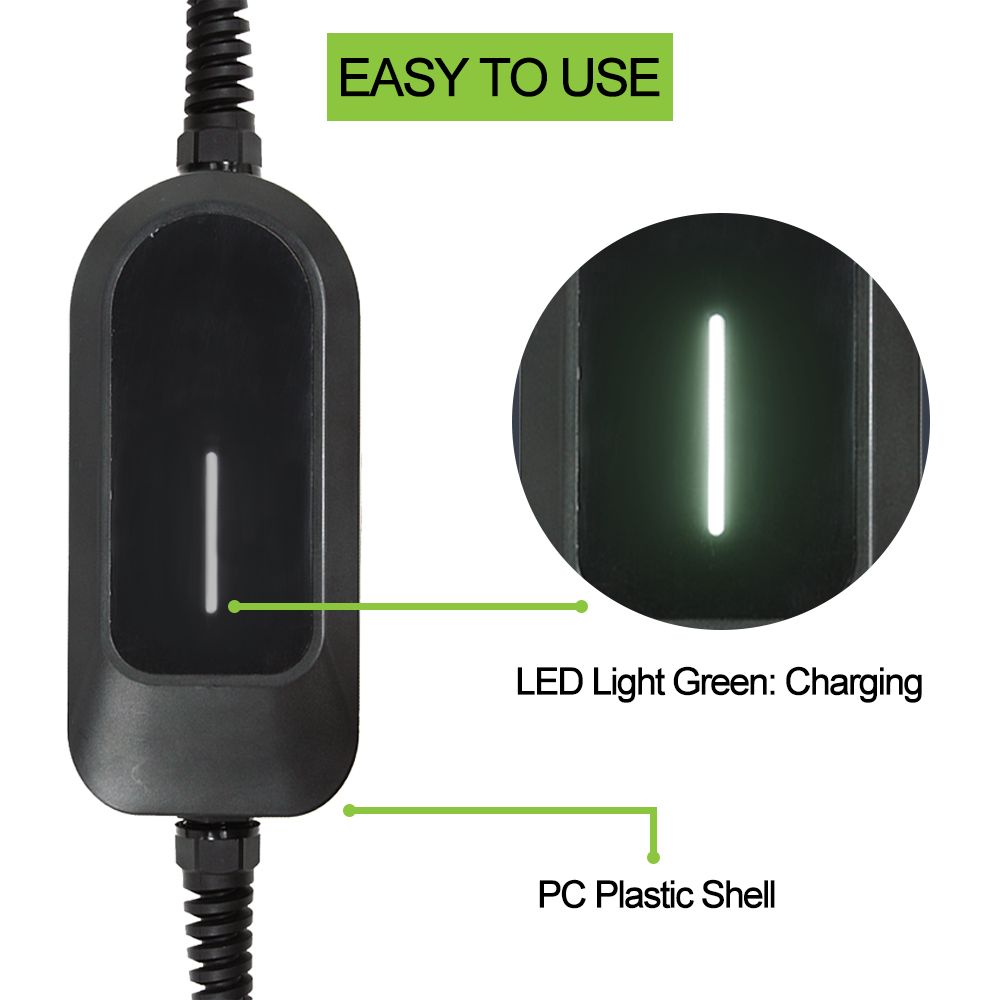

4*LED Indicator light |
|
|
Cable length |
5m standard, 10m or other size customizable |
|
|
Weight |
2.4kg (Including charging gun) |
|
|
Electrical Specification |
Input voltage |
220V |
|
Frequency |
45-65Hz |
|
|
Power rating |

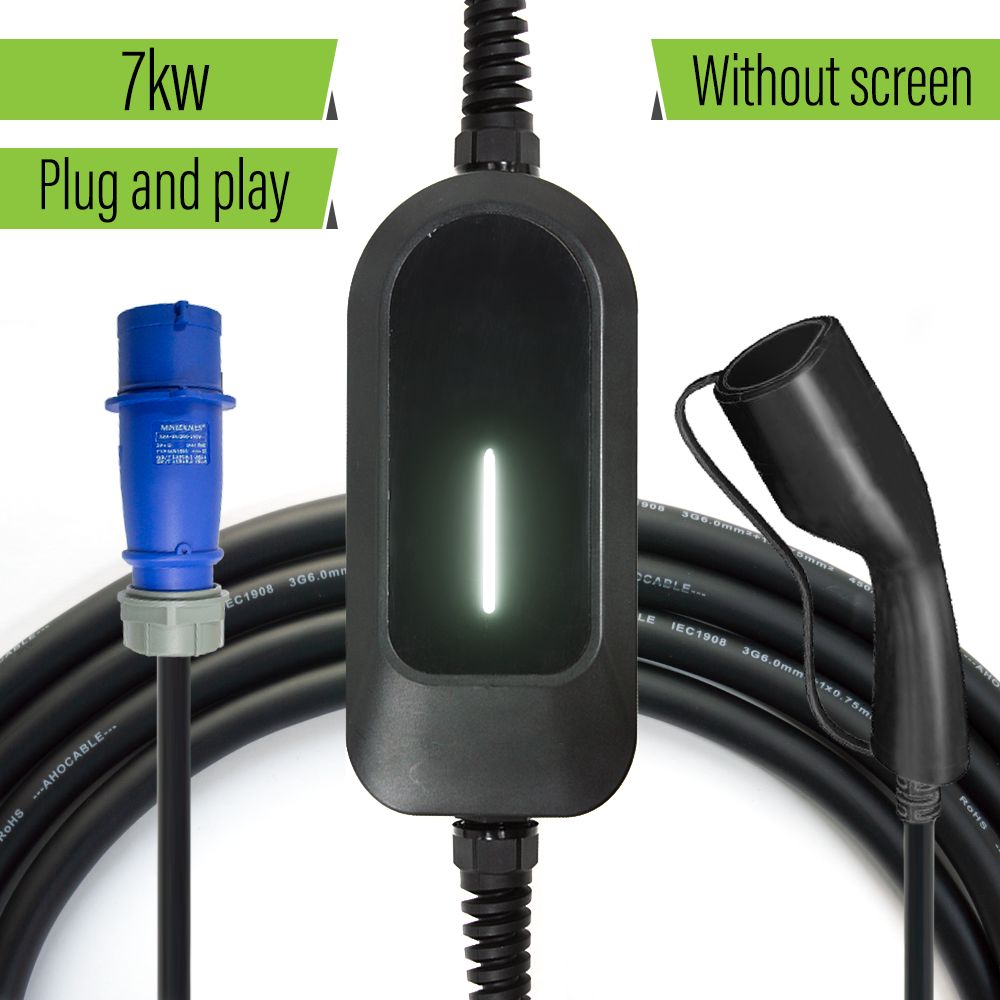

7KW |
|
|
Measurement accuracy |
Grade 1.0 on-board |
|
|
Output voltage |
AC220V±20% |
|
|
Output current |
32A |
|
|
Standby power |
≤1W |
|
|
Interface Design |
Power supply interface |
Industriall waterproof plug |
|
Charging interface |
IEC 61851 |
|
|
Safety Design |
Design standard |
SAE J1772、IEC 61851、GB/T 20234.1、GB/T 20234.2GB/T 18487.1、NB/T 42077 |
|
Protection |
Overvoltage protection,undervoltage protection,overload protection, short circuit protection, grounding protection, type Aleakage protection,llightning/surge protection, reverse connection protection,adhesion detection, over temperature protection |
|
|
EMC Level |
EMS automotive electronics standards,EMl Class B limit |
|
|
Operating Environment |
Working temperature |
-40-+65℃ |
|
Working Humidity |
5%-95% no condensation |
|
|
Working altitude |
≤4000m |
|
|
Flame retardant properties |
UL94-V0 |
|
|
IP grade |
≥IP65 |
|
|
Cooling mode |
Natural cooling |
|
|
Applicable |
Indoor/Outdoor，No conductive dust, no corrosive gas, no explosive gas, no strong vibration |
|
|
Special protection |
Anti- Uv design, anti-vehicle rolling design |
|
|
MTBF |
≥100000H |
|
|
Optional |
Plug temperature control |
